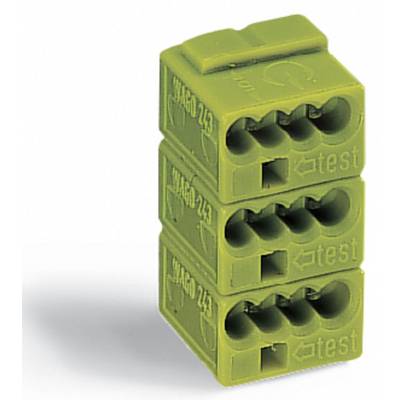

WAGO 243-746 WAGO GmbH & Co. KG Screw terminal flexible: - fixed: 0.28-0.5 mm² Number of pins: 6 50 pc(s) Light green
EAN:
Part number:
Item no:
Nominal current - rounded value
6 A
Series
243
Cross section (inflexible) (max.)
0.5 mm²
Cross section (inflexible) (min.)
0.28 mm²
Number of pins
6
Datasheet (PDF)
Sales and shipping:
Number (Package size 50 pc(s))
Total (€ 2.35 / piece)
€
Highlights & Details
PCB connector strip
- 243-746
- Industrial packaging, pack of 50
Technical specifications
- MODULAR F-PCB CONN STRIPS
- Nominal current
6 A
- Nominal current - rounded value
6 A
- Content
50 pc(s)
- Manufacturer part #
243-746
- Factory colour
Light green
- Width
10 mm
- Industrial packaging
Yes
- Connector clip features
Test window
- Connection
Quick-connect
- Series
243
- Nominal voltage
150 V
- Cross section (inflexible) (max.)
0.5 mm²
- Cross section (inflexible) (min.)
0.28 mm²
- Number of pins
6
- Insulation material
PA 6.6
- Stripping length
5 - 6 mm
24 - 22
- Contact material
Copper alloy
- Product type
Screw terminal
Documents & Downloads
Datasheet
Datasheet 729784 WAGO 243-746 WAGO GmbH & Co. KG Screw terminal flexible: - fixed: 0.28-0.5 mm² Number of pins: 6 50 pc(s) Light green
Description
With the test hole for solid wires, 6-pin pitch 5.75 mm/0.226 in, with dovetail locking can be stacked end-to-end to socket strips, light green.
