Buy WAGO 254-253 Spring-loaded terminal Number of pins 3 Grey 200 pc(s)

Grey, elongated electrical connector module with multiple terminal blocks and metal pins on the underside.

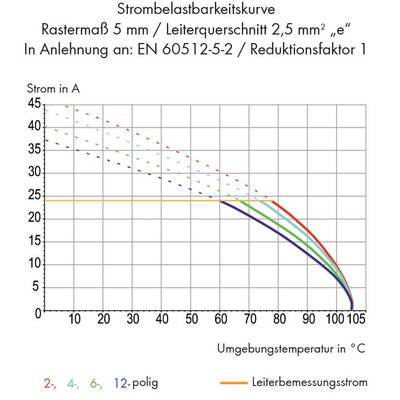

'Current load capacity curve shows current in A against ambient temperature in °C. Includes curves for 2-, 4-, 6- and 12-pole configurations.'

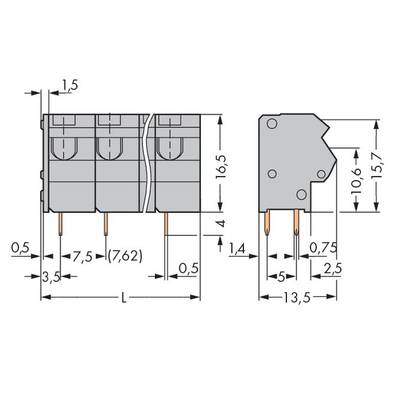

Technical drawing of an electronic connector with dimensions: height 16.5 mm, width 7.5 mm, and additional details.

1/3

Datasheet (PDF)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number (Package size 200 pc(s))

Set(s)

Total (€ 1.07 / piece)

€

Report legal concerns

Highlights & Details

2-conductor PCB terminal strip

Content 200 pc(s)

Technical specifications

3 POS PCB STRIP

Features: + PUSH WIRE®

CS: 7.50 mm
7.62 mm

No. of rows: 1

Pins per row: 3

Number of pins: 3

Series: 254

Min. stripping length: 6 mm

Stripping length (max.): 12 mm

Connection: Spring-loaded terminal
Print

Nominal current - rounded value

Cross section (inflexible) (min.): 0.25 mm²

Cross section (inflexible) (max.): 0.75 mm²

AWG (min.): 22

Connector orientation: At an angle (to the PCB)

AWG max.: 18

Contact material: Cathode copper, tin plated

Factory colour: Grey

Wire protection: Yes

Content: 200 pc(s)

Height: 20.50 mm

Length: 13.50 mm

Width: 24.00 mm

Industrial packaging: Yes

Manufacturer part #: 254-253

Type: 254-253

Nominal voltage: 400 V

Product type: Spring-loaded terminal

Documents & Downloads

Datasheet

Datasheet 746962 WAGO 254-253 Spring-loaded terminal Number of pins 3 Grey 200 pc(s)

User & Safety Instructions

User & Safety Instructions 746962 WAGO 254-253 Spring-loaded terminal Number of pins 3 Grey 200 pc(s)

WAGO 254-253 Spring-loaded terminal Number of pins 3 Grey 200 pc(s)
