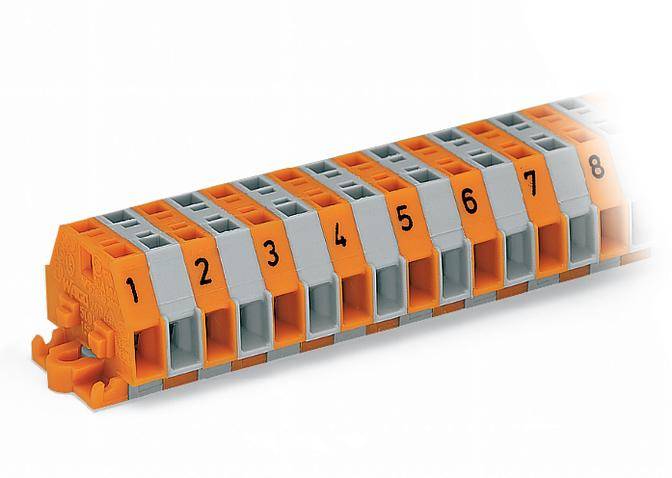

WAGO 260-410 Punch-down block 6 mm Pull spring Configuration: L Grey 25 pc(s)
EAN:
Part number:
Item no:
Connection
Pull spring
Cross section (flexible) (min.)
0.08 mm²
Cross section (flexible) (max.)
1.50 mm²
Cross section (inflexible) (min.)
0.08 mm²
Cross section (inflexible) (max.)
1.50 mm²
Datasheet (PDF)
Show alternatives
Sales and shipping:
Number (Package size 25 pc(s))
Total (€ 9.58 / piece)
€
Highlights & Details
2-conductor terminal strip
- WAGO GmbH & Co. KG
Technical specifications
- TERMINAL STRIP 10 DA 2,5 QMM
- Features
+ sleeve
- Connection
Pull spring
- Configuration
L
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
1.50 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
1.50 mm²
- AWG (min.)
28
- AWG max.
16
- Clamp width
6 mm
- No. of rows
10
- Pins per row
2
- Number of pins
20
- Factory colour
Grey
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Nominal voltage
400 V
- Min. stripping length
8 mm
- Stripping length (max.)
9 mm
- Manufacturer part #
260-410
- Content
25 pc(s)
- Industrial packaging
Yes
- Type
WAGO GmbH & Co. KG
- Width
64.50 mm
- Contamination level
3
- Product type
Punch-down block
Documents & Downloads
Datasheet
Datasheet 532691 WAGO 260-410 Punch-down block 6 mm Pull spring Configuration: L Grey 25 pc(s)
User & Safety Instructions
User & Safety Instructions 532691 WAGO 260-410 Punch-down block 6 mm Pull spring Configuration: L Grey 25 pc(s)
Description
With mounting flanges, for screw mounting hole Ø 3.2 mm, among other things, mounting types with mounting base 209-123 also on TS 35, for 10 DA.
