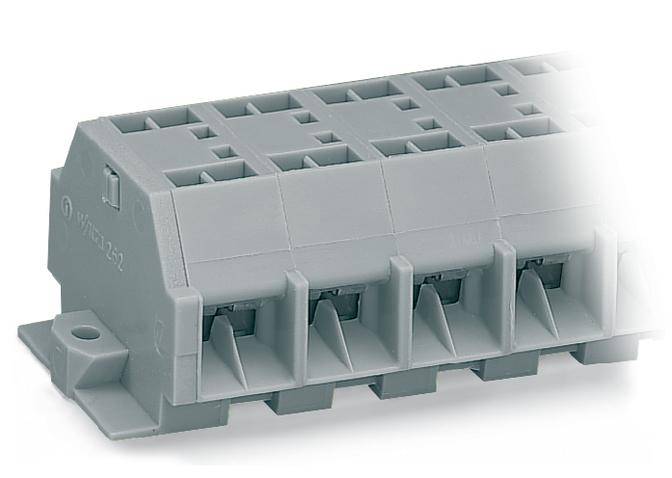

WAGO 262-202 Punch-down block 12 mm Pull spring Configuration: L Grey 100 pc(s)
EAN:
Part number:
Item no:
Product type
Punch-down block
Connection
Pull spring
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
32 A
Datasheet (PDF)
Sales and shipping:
Number (Package size 100 pc(s))
Total (€ 2.43 / piece)
€
Highlights & Details
4-conductor terminal strip
- 262-202
- Industrial packaging with 100 pieces
Technical specifications
- TERMINAL STRIP 4 SQMM 2-POL.2-COND.
- Product type
Punch-down block
- Features
+ sleeve
- Connection
Pull spring
- Configuration
L
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
28
- AWG max.
12
- Clamp width
12 mm
- No. of rows
2
- Pins per row
4
- Number of pins
8
- Factory colour
Grey
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Nominal voltage
630 V
- Min. stripping length
9 mm
- Stripping length (max.)
10 mm
- Manufacturer part #
262-202
- Content
100 pc(s)
- Industrial packaging
Yes
- Type
262-202
- Dim
(W x H) 38.50 mm x 23 mm
- Width
38.50 mm
- Height
23 mm
- Contamination level
3
Documents & Downloads
Datasheet
Datasheet 534638 WAGO 262-202 Punch-down block 12 mm Pull spring Configuration: L Grey 100 pc(s)
User & Safety Instructions
User & Safety Instructions 534638 WAGO 262-202 Punch-down block 12 mm Pull spring Configuration: L Grey 100 pc(s)
Description
With mounting flanges, for screw mounting hole Ø 3.2 mm, among other things, mounting types with mounting base 209-123 also on TS 35, 2-pole, gray.
