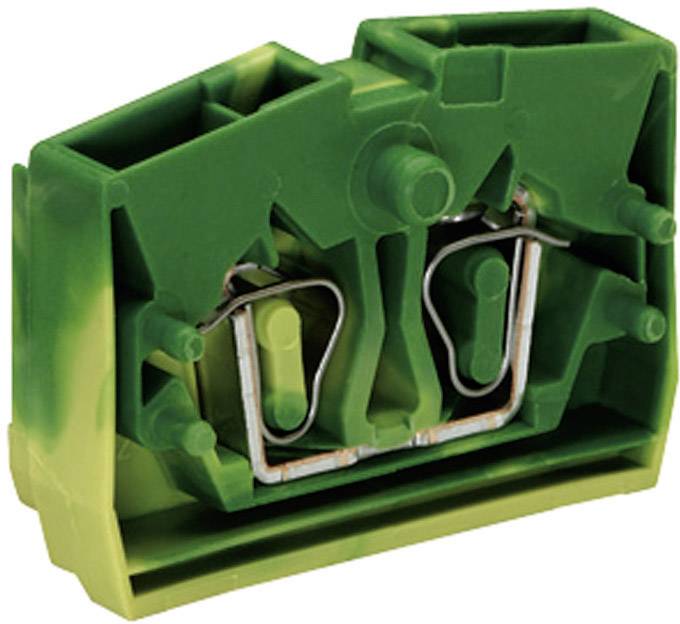

WAGO 264-327 Terminal 6 mm Pull spring Configuration: Terre Green, Yellow 1 pc(s)
EAN:
Part number:
Item no:
Product type
Terminal
Connection
Pull spring
Cross section (flexible) (max.)
2.50 mm²
Cross section (inflexible) (max.)
2.50 mm²
Nominal current - rounded value
24 A
Datasheet (PDF)
31 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.08
10
7% = € 0.08
€ 1.00
25
11% = € 0.12
€ 0.96
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.08 / piece)
€
Technical specifications
- Product type
Terminal
- Connection
Pull spring
- Configuration
Terre
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
2.50 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- AWG (min.)
28
- AWG max.
14
- Clamp width
6 mm
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Factory colour
Green
Yellow
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
800 V
- Min. stripping length
8 mm
- Stripping length (max.)
9 mm
- Manufacturer part #
264-327
- Content
1 pc(s)
- Type
264-327
- Width
6 mm
- Type
2-conductors
- Nominal voltage (details)
800 V
- Nominal current (details)
24 A
Documents & Downloads
Datasheet
Datasheet 744996 WAGO 264-327 Terminal 6 mm Pull spring Configuration: Terre Green, Yellow 1 pc(s)
Datasheet 744996 WAGO 264-327 Terminal 6 mm Pull spring Configuration: Terre Green, Yellow 1 pc(s)
User & Safety Instructions
User & Safety Instructions 744996 WAGO 264-327 Terminal 6 mm Pull spring Configuration: Terre Green, Yellow 1 pc(s)
Description
Stackable single terminal blocks with CAGE CLAMP® connection for single, multiple and fine-stranded copper conductors. The centre terminal blocks can easily be connected to one another. An end plate is fixed on one end and an end terminal block on the other end (both with mounting flange for screwing on the terminal strip).
