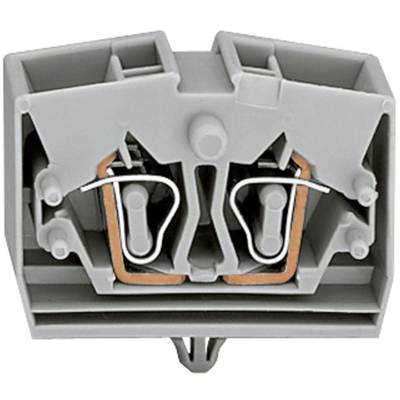

WAGO 264-341 Terminal 10 mm Pull spring Configuration: L Grey 1 pc(s)
EAN:
Part number:
Item no:
Product type
Terminal
Connection
Pull spring
Cross section (flexible) (max.)
2.50 mm²
Cross section (inflexible) (max.)
2.50 mm²
Nominal current - rounded value
24 A
Datasheet (PDF)
69 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.50
10
7% = € 0.11
€ 1.39
25
11% = € 0.16
€ 1.34
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.50 / piece)
€
Technical specifications
- 4 COND.MOD.T.BL.SNAP-IN MT.FT.GREY
- Product type
Terminal
- Features
+ latch lock base
- Connection
Pull spring
- Configuration
L
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
2.50 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- AWG (min.)
28
- AWG max.
14
- Clamp width
10 mm
- No. of rows
1
- Pins per row
4
- Number of pins
4
- Factory colour
Grey
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
800 V
- Min. stripping length
8 mm
- Stripping length (max.)
9 mm
- Manufacturer part #
264-341
- Content
1 pc(s)
- Type
264-341
- Width
10 mm
Documents & Downloads
Datasheet
Datasheet 745044 WAGO 264-341 Terminal 10 mm Pull spring Configuration: L Grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 745044 WAGO 264-341 Terminal 10 mm Pull spring Configuration: L Grey 1 pc(s)
Description
Stackable single terminal blocks with CAGE CLAMP® connection for single, multiple and fine-stranded copper conductors. It locks into place locking holes on mounting plates or on Alu-Spezialschiene. A terminal with snap-in base is at every 4 or 5. Place the terminal block is required. In between, the 2- and 4-wire center terminals 264-series can be used. The terminals are simply plugged together. On both ends an end plate.
This text is machine translated.
This text is machine translated.
