WAGO 280-575 Actuator terminal 5 mm Pull spring Configuration: L Grey 50 pc(s)
EAN:
Part number:
Item no:
Connection
Pull spring
Cross section (flexible) (min.)
0.08 mm²
Cross section (flexible) (max.)
2.50 mm²
Cross section (inflexible) (min.)
0.08 mm²
Cross section (inflexible) (max.)
2.50 mm²
Datasheet (PDF)
Sales and shipping:
Number (Package size 50 pc(s))
Total (€ 8.05 / piece)
€
Highlights & Details

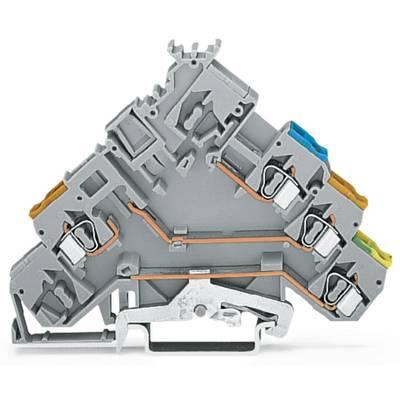

Actuator terminal block
- 280-575
- Industrial packaging, pack of 50
Technical specifications
- ACTUATOR T.BL.F.FUSE PLUG CONN.PE
- Features
+ PG connector
- Connection
Pull spring
- Configuration
L
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
2.50 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- AWG (min.)
28
- AWG max.
14
- Clamp width
5 mm
- No. of rows
3
- Number of pins
4
- Factory colour
Grey
- Nominal current
5 A
- Nominal current - rounded value
5 A
- Nominal voltage
125 V
- Min. stripping length
8 mm
- Stripping length (max.)
9 mm
- Manufacturer part #
280-575
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
WAGO GmbH & Co. KG

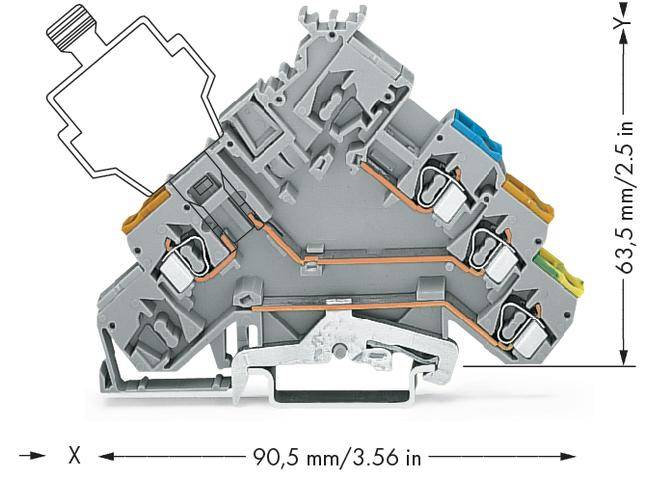

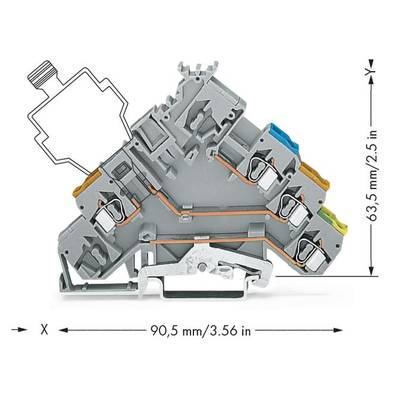

- Dim
(W x H) 5 mm x 63.50 mm
- Width
5 mm
- Height
63.50 mm
- Product type
Actuator terminal
Documents & Downloads
Datasheet
Datasheet 535902 WAGO 280-575 Actuator terminal 5 mm Pull spring Configuration: L Grey 50 pc(s)
User & Safety Instructions
User & Safety Instructions 535902 WAGO 280-575 Actuator terminal 5 mm Pull spring Configuration: L Grey 50 pc(s)
Description
With PE connection, for safety plug for phase protection, without cover plate, for solenoid valves, actuators, gray.
