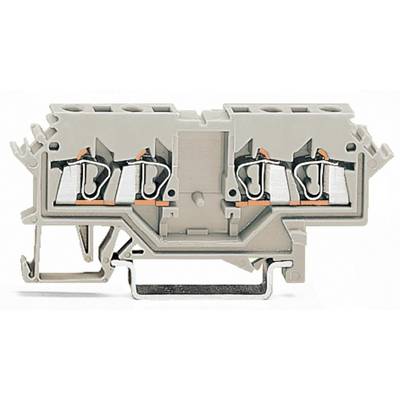

WAGO 280-989 Continuity 5 mm Pull spring Configuration: L Grey 100 pc(s)
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Pull spring
Cross section (flexible) (max.)
2.50 mm²
Cross section (inflexible) (max.)
2.50 mm²
Nominal current - rounded value
22 A
Datasheet (PDF)
Sales and shipping:
Number (Package size 100 pc(s))
Total (€ 2.26 / piece)
€
Highlights & Details
Ex e II double potential terminal block
- 280-989
- Industrial packaging with 100 pieces
Technical specifications
- EExeII DOUBLE POTENTIAL BLOCK LT.GRY
- Product type
Continuity
- Features
Complies with ATEX Ex-e II standards
- Connection
Pull spring
- Configuration
L
- Cross section (flexible) (min.)
0.02 mm²
- Cross section (flexible) (max.)
2.50 mm²
- Cross section (inflexible) (min.)
0.02 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- AWG (min.)
24
- AWG max.
14
- Clamp width
5 mm
- No. of rows
1
- Pins per row
4
- Number of pins
4
- Factory colour
Grey
- Nominal current
22 A
- Nominal current - rounded value
22 A
- Nominal voltage
550 V
- Min. stripping length
8 mm
- Stripping length (max.)
9 mm
- Manufacturer part #
280-989
- Content
100 pc(s)
- Industrial packaging
Yes
- Type
280-989

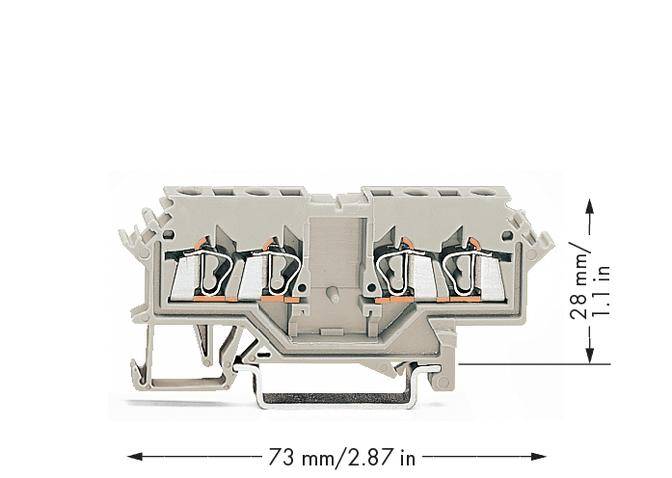

- Dim
(W x H) 5 mm x 28 mm
- Width
5 mm
- Height
28 mm
Documents & Downloads
Datasheet
Datasheet 536307 WAGO 280-989 Continuity 5 mm Pull spring Configuration: L Grey 100 pc(s)
User & Safety Instructions
User & Safety Instructions 536307 WAGO 280-989 Continuity 5 mm Pull spring Configuration: L Grey 100 pc(s)
Description
With lateral label recordings, complies with ATEX Ex-e II light gray.
