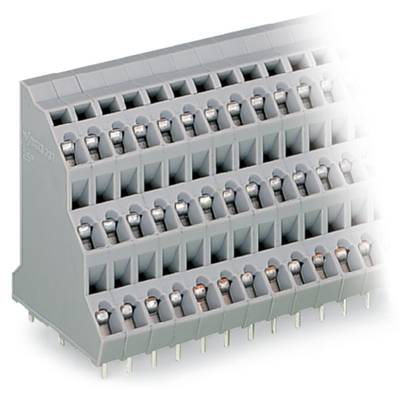

WAGO 737-103 3-tier terminal 2.50 mm² Number of pins 9 Grey 64 pc(s)
EAN:
Part number:
Item no:
Product type
3-tier terminal
CS
5 mm
Pins per row
3
Number of pins
9
Connection
Spring-loaded terminal
Print
Datasheet (PDF)
Sales and shipping:
Number (Package size 64 pc(s))
Total (€ 4.53 / piece)
€
Technical specifications
- T. DECK IN LINE 5MM GREY
- Type
WAGO GmbH & Co. KG
- Product type
3-tier terminal
- Features
+ CAGE CLAMP®
- CS
5 mm
- No. of rows
3
- Pins per row
3
- Number of pins
9
- Series
737
- Min. stripping length
8 mm
- Stripping length (max.)
6 mm
- Connection
Spring-loaded terminal
Print
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
2.50 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- AWG (min.)
28
- Connector orientation
At an angle (to the PCB)
- AWG max.
12
- Contact material
Cathode copper, tin plated
- Factory colour
Grey
- Wire protection
Yes
- Manufacturer part #
737-103
- Industrial packaging
Yes
- Content
64 pc(s)
- Nominal voltage
320 V
- Width
44.00 mm
- Height
31.00 mm
- Length
16.00 mm
