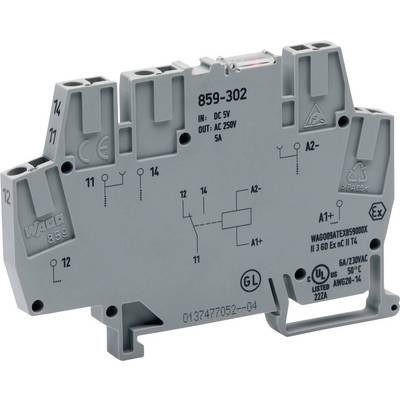

'WAGO 859-302 relay module, input: DC 5V, output: AC 250V, 5A. Grey casing with multiple connection terminals and printed electrical diagram.'

'WAGO 859-302 relay module, input: DC 5V, output: AC 250V, 5A. Grey casing with multiple connection terminals and printed electrical diagram.'

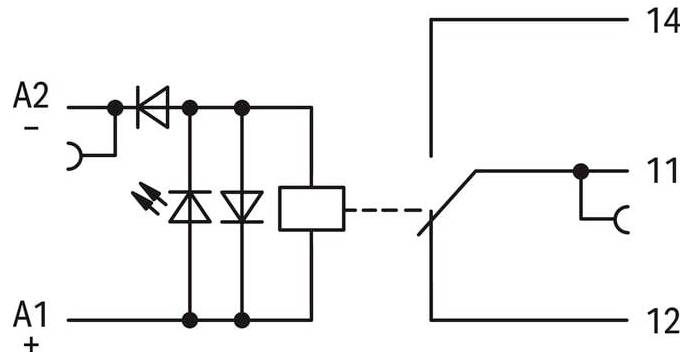

Diagram of an electronic relay circuit with connections at A1 (+), A2 (-), and output at 11, 12, and 14. Includes a diode and LED indicator.

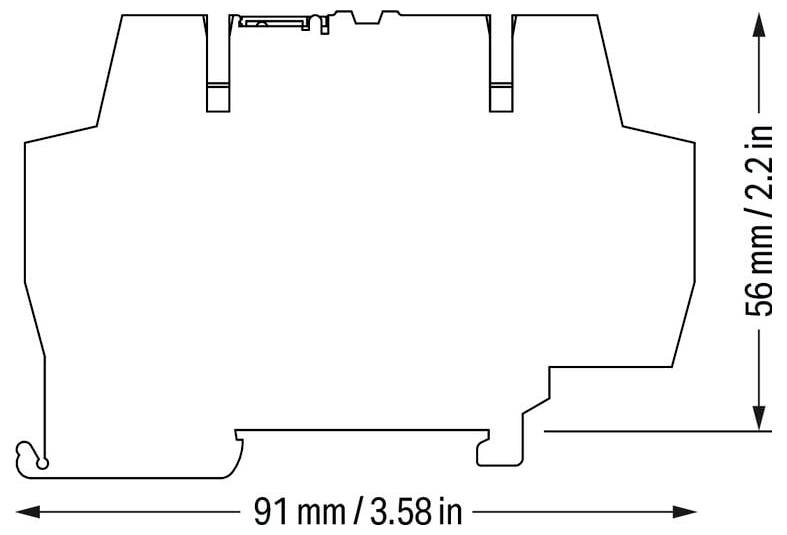

Diagram showing the dimensions of an electronic device, measuring 91 mm (3.58 in) in width and 56 mm (2.2 in) in height.

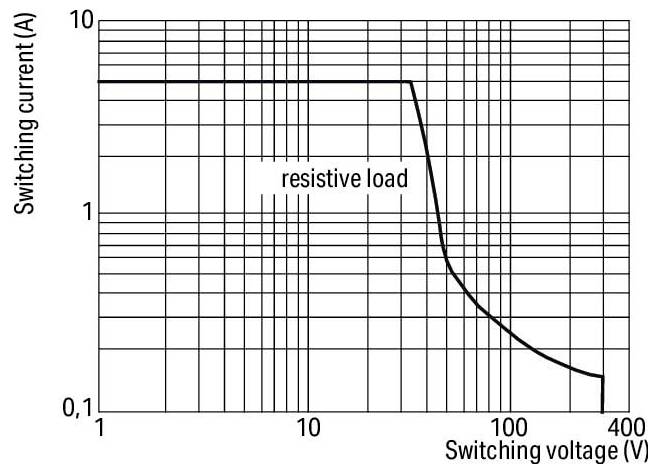

Graph showing the relationship between switching current (A) and switching voltage (V) for a resistive load. Current decreases sharply after 100 V.

A component with a green printed circuit board and white relays in a grey enclosure; it is an electrical and technical device.

1/5

WAGO

Datasheet (PDF)

12 Piece(s)

Do your needs go beyond this?

Sales and shipping:

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 25.20 / piece)

€ 36.97

-32 %

€

Report legal concerns

Technical specifications

Type: 859-302

Connection: Pull spring

Factory colour: Grey

Response time: 15 ms

Fall time: 25 ms

Contact type: 1 change-over

Contact material: AgSnO2

Nominal voltage: 5 V DC

Switching voltage (max.): 250 V AC

Switching current (max.): 5 A

Max. switching capacity: 1250 VA

Durability: 5 x 10⁶ switching operations

Length: 91 mm

Width: 6 mm

Height: 56 mm

Dim: (L x W x H) 91 x 6 x 56 mm

Content: 1 pc(s)

Weight: 22.5 g

Product type: Relay terminal
