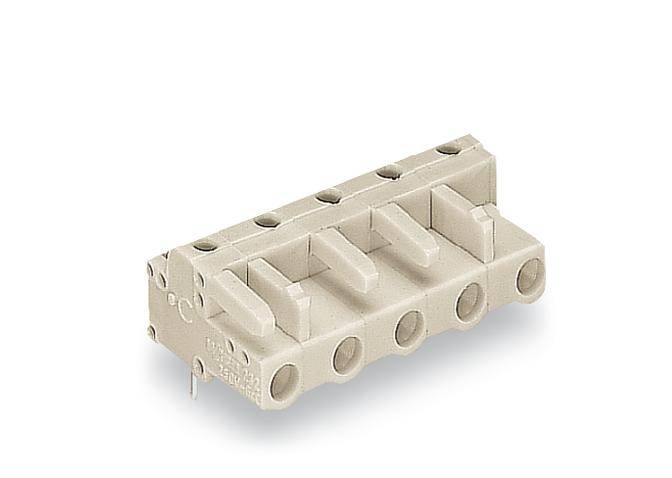

WAGO Socket housing PCB 722 Total number of pins 9 Contact spacing: 7.50 mm 722-839 25 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Number (Package size 25 pc(s))
Total (€ 5.21 / piece)
€
Highlights & Details
Female connector
- Content: 25 pc(s)
- No. of rows: 1
- Total number of pins: 9
Technical specifications
- F-CONN V0 RT ANGLE 7.5MM
- Connector type
Socket, horizontal mount
- Connector system
wire-to-board
- Series
722
- CS
7.50 mm
- Pins per row
9
- Total number of pins
9
- Nominal current
15 A
- Nominal current - rounded value
15 A
- Content
25 pc(s)

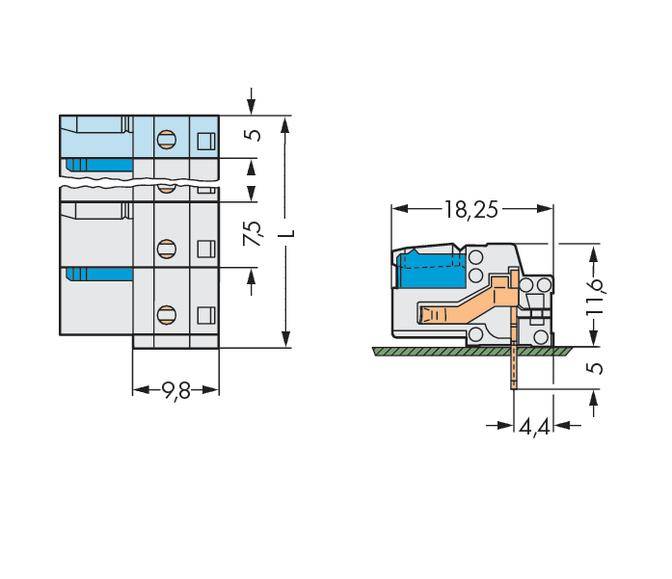

- Dim
(L x W x H) 16.60 x 66.50 x 18.25 mm
- Factory colour
Light grey
- Height
18.25 mm
- Length
16.60 mm
- Width
66.50 mm
- Industrial packaging
Yes
- Connection
Print
- Connector contact surface
Tin plated
- Board contact surface
Tin plated
- Connector orientation
Parallel (to the PCB)
- Manufacturer part #
722-839
- Type
WAGO GmbH & Co. KG
- Nominal voltage
630 V
- No. of rows
1
- Contact material
Copper alloy
- Case material
PA 66
- Product type
Socket housing PCB
Documents & Downloads
Datasheet
Datasheet 540864 WAGO Socket housing PCB 722 Total number of pins 9 Contact spacing: 7.50 mm 722-839 25 pc(s)
User & Safety Instructions
User & Safety Instructions 540864 WAGO Socket housing PCB 722 Total number of pins 9 Contact spacing: 7.50 mm 722-839 25 pc(s)
Description
With angled solder pins, 9-pin pitch 7.5 mm, connection error proof, solder pin 0.6x1 mm, coding, with 2 tabs, with coding flange, light gray.
