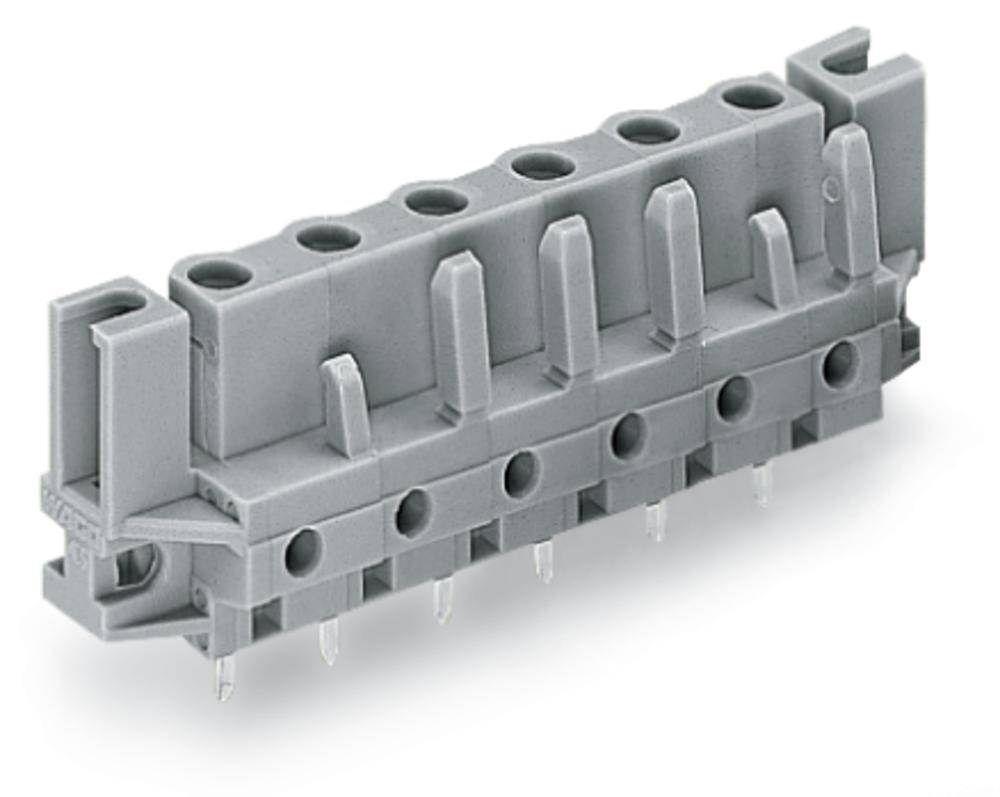

WAGO Socket housing PCB 232 Total number of pins 3 Contact spacing: 7.50 mm 232-733/047-000 50 pc(s)
EAN:
Part number:
Item no:
Product type
Socket housing PCB
Connector type
Socket, vertical vertical
No. of rows
1
Series
232
CS
7.50 mm
Datasheet (PDF)
Sales and shipping:
Number (Package size 50 pc(s))
Total (€ 2.18 / piece)
€
Highlights & Details
Female connector
- Content: 50 pc(s)
- No. of rows: 1
- Total number of pins: 3
Technical specifications
- 303-106 T.STRIP 6 POL. W-O WIRE PROT
- Product type
Socket housing PCB
- Connector type
Socket, vertical vertical
- No. of rows
1
- Connector system
wire-to-board
- Series
232
- Features
+ sleeve
- CS
7.50 mm
- Pins per row
3
- Total number of pins
3
- Width
34.80 mm
- Content
50 pc(s)

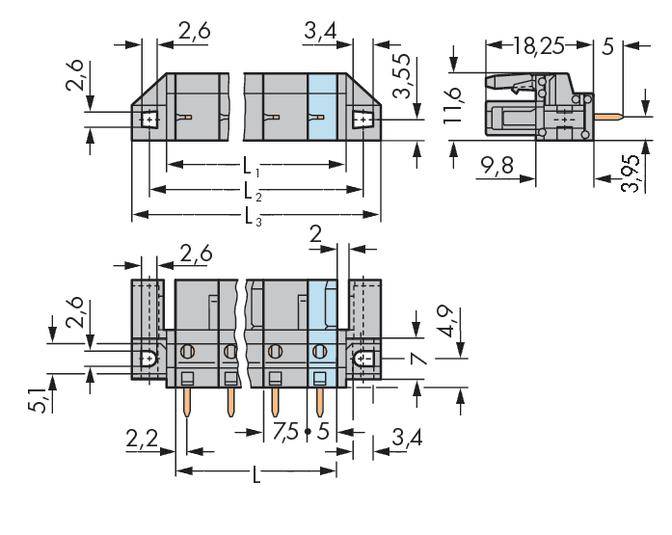

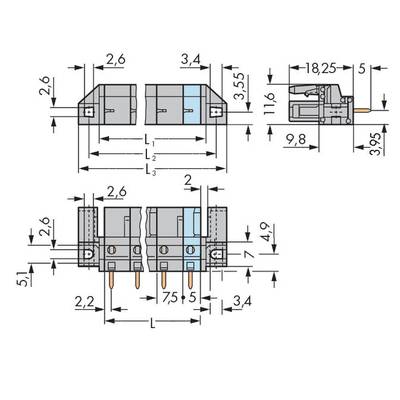

- Dim
(L x W x H) 11.60 x 34.80 x 23.25 mm
- Connection
Print
- Manufacturer part #
232-733/047-000
- Factory colour
Grey
- Industrial packaging
Yes
- Contact material
Cathode copper, tin plated
- Board contact surface
Tin plated
- Connector contact surface
Tin plated
- Nominal voltage
630 V
- Height
23.25 mm
- Length
11.60 mm
- Connector orientation
Perpendicular (to the PCB)
- Type
232-733/047-000
Documents & Downloads
Datasheet
Datasheet 728919 WAGO Socket housing PCB 232 Total number of pins 3 Contact spacing: 7.50 mm 232-733/047-000 50 pc(s)
User & Safety Instructions
User & Safety Instructions 728919 WAGO Socket housing PCB 232 Total number of pins 3 Contact spacing: 7.50 mm 232-733/047-000 50 pc(s)
Description
With straight soldering pins, 3-pin with spacer flanges, grid pitch 7.5 mm, solder pin 0.6x1 mm, coding, only 1 snap-in jack, for flush mounting in the casing, gray.
