A blue electric contactor with 'WEG' inscription and model number 'CWCA0.40_S', equipped with multiple terminal connections at the top and bottom.

A blue electric contactor with 'WEG' inscription and model number 'CWCA0.40_S', equipped with multiple terminal connections at the top and bottom.

Image similar

Product type

Contactor

No. of pins

4-pin

Nominal voltage

230 V AC

Connection

Spring-loaded terminal

Type

CWCA0-22-00D24S

Datasheet (PDF)

Deutsch (Deutschland)

WEG

3 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 27.72 / piece)

€

Only 3 Piece(s) available

Report legal concerns

Technical specifications

Product type: Contactor

Type: CWCA0-22-00D24S

No. of pins: 4-pin

Auxiliary contact type: 2 makers
2 breakers

Nominal voltage: 230 V AC

Switching voltage (max.): 400 V AC

Permanent current (max.): 10 A

Mounting type: DIN rail

Connection: Spring-loaded terminal

Durability: 10 x 10⁶ switching cycles

: IP20

Min. temperature: -25 °C

Max. temperature: +55 °C

Width: 45 mm

Height: 60 mm

Depth: 54.4 mm

Dim: (W x H x D) 45 x 60 x 54.4 mm

Content: 1 pc(s)

RoHS-compliant: Yes

Documents & Downloads

Datasheet

Deutsch (Deutschland)

Datasheet 1398492 WEG CWCA0-22-00D24S Contactor 230 V AC 1 pc(s)

User & Safety Instructions

European union

User & Safety Instructions 1398492 WEG CWCA0-22-00D24S Contactor 230 V AC 1 pc(s)

Description

Auxiliary contactor with screw-less clamp technology for control and locking tasks. It has the same structures as the power contactors. Built and tested according to IEC/EN 60947 or DIN VDE 0660, fulfills the approvals and certifications according to UL/CSA, GOST. High contact reliability in case of small voltages and currents. The base unit has 4 contacts, which can be extended to maximum 8 contacts by means of the auxiliary switch blocks mounted on the front side.

This text is machine translated.

What kind of Contactors are you looking for?

More interesting products

(^*All information is plus legal VAT)

TRU COMPONENTS TC-GLC1-18 230V Contactor 3 makers 7.5 kW 230 V AC 18 A 1 pc(s)

TRU COMPONENTS TC-GLC1-18 230V Contactor 3 makers 7.5 kW 230 V AC 18 A 1 pc(s)

Conrad Electronic

TRU COMPONENTS TC-GR8-116/230 Auxiliary switch 1 change-over 24 V AC, 24 V DC, 230 V AC 16 A 1 pc(s)

TRU COMPONENTS TC-GR8-116/230 Auxiliary switch 1 change-over 24 V AC, 24 V DC, 230 V AC 16 A 1 pc(s)

Conrad Electronic

TRU COMPONENTS TC-GR8-116/12 Auxiliary switch 1 change-over 12 V AC, 12 V DC 16 A 1 pc(s)

TRU COMPONENTS TC-GR8-116/12 Auxiliary switch 1 change-over 12 V AC, 12 V DC 16 A 1 pc(s)

Conrad Electronic

TRU COMPONENTS TC-GLC1-12 230V Contactor 3 makers 5.5 kW 230 V AC 12 A 1 pc(s)

TRU COMPONENTS TC-GLC1-12 230V Contactor 3 makers 5.5 kW 230 V AC 12 A 1 pc(s)

Conrad Electronic

TRU COMPONENTS TC-GR8-308/12 Auxiliary switch 3 change-overs 12 V AC, 12 V DC 8 A 1 pc(s)

TRU COMPONENTS TC-GR8-308/12 Auxiliary switch 3 change-overs 12 V AC, 12 V DC 8 A 1 pc(s)

Conrad Electronic

TRU COMPONENTS TC-GYJ1-13-230VAC Auxiliary contactor 1 maker, 3 breakers 230 V AC 10 A 1 pc(s)

TRU COMPONENTS TC-GYJ1-13-230VAC Auxiliary contactor 1 maker, 3 breakers 230 V AC 10 A 1 pc(s)

Conrad Electronic

TRU COMPONENTS TC-GR8-208/230 Auxiliary switch 2 change-overs 24 V AC, 24 V DC, 230 V AC 8 A 1 pc(s)

TRU COMPONENTS TC-GR8-208/230 Auxiliary switch 2 change-overs 24 V AC, 24 V DC, 230 V AC 8 A 1 pc(s)

Conrad Electronic

TRU COMPONENTS TC-GLC1-32 230V Contactor 3 makers 15 kW 230 V AC 32 A 1 pc(s)

TRU COMPONENTS TC-GLC1-32 230V Contactor 3 makers 15 kW 230 V AC 32 A 1 pc(s)

Conrad Electronic

TRU COMPONENTS TC-GLC1-09 230V Contactor 3 makers 4 kW 230 V AC 9 A 1 pc(s)

TRU COMPONENTS TC-GLC1-09 230V Contactor 3 makers 4 kW 230 V AC 9 A 1 pc(s)

Conrad Electronic

TRU COMPONENTS TC-GYJ1-04-24VDC Auxiliary contactor 4 breakers 24 V DC 10 A 1 pc(s)

TRU COMPONENTS TC-GYJ1-04-24VDC Auxiliary contactor 4 breakers 24 V DC 10 A 1 pc(s)

Conrad Electronic

TRU COMPONENTS TC-GYJ1-13-24VDC Auxiliary contactor 1 maker, 3 breakers 24 V DC 10 A 1 pc(s)

TRU COMPONENTS TC-GYJ1-13-24VDC Auxiliary contactor 1 maker, 3 breakers 24 V DC 10 A 1 pc(s)

Conrad Electronic

TRU COMPONENTS TC-GYJ1-31-24VDC Auxiliary contactor 3 makers, 1 breaker 24 V DC 10 A 1 pc(s)

TRU COMPONENTS TC-GYJ1-31-24VDC Auxiliary contactor 3 makers, 1 breaker 24 V DC 10 A 1 pc(s)

Conrad Electronic

TRU COMPONENTS TC-GYJ1-40-230VAC Auxiliary contactor 4 makers 230 V AC 10 A 1 pc(s)

TRU COMPONENTS TC-GYJ1-40-230VAC Auxiliary contactor 4 makers 230 V AC 10 A 1 pc(s)

Conrad Electronic

TRU COMPONENTS TC-GYJ1-40-24VDC Auxiliary contactor 4 makers 24 V DC 10 A 1 pc(s)

TRU COMPONENTS TC-GYJ1-40-24VDC Auxiliary contactor 4 makers 24 V DC 10 A 1 pc(s)

Conrad Electronic

TRU COMPONENTS TC-GYJ1-04-230VAC Auxiliary contactor 4 breakers 230 V AC 10 A 1 pc(s)

TRU COMPONENTS TC-GYJ1-04-230VAC Auxiliary contactor 4 breakers 230 V AC 10 A 1 pc(s)

Conrad Electronic

TRU COMPONENTS TC-GYJ1-22-230VAC Auxiliary contactor 2 breakers, 2 makers 230 V AC 10 A 1 pc(s)

TRU COMPONENTS TC-GYJ1-22-230VAC Auxiliary contactor 2 breakers, 2 makers 230 V AC 10 A 1 pc(s)

Conrad Electronic

TRU COMPONENTS TC-GYJ1-22-24VDC Auxiliary contactor 2 breakers, 2 makers 24 V DC 10 A 1 pc(s)

TRU COMPONENTS TC-GYJ1-22-24VDC Auxiliary contactor 2 breakers, 2 makers 24 V DC 10 A 1 pc(s)

Conrad Electronic

TRU COMPONENTS TC-GYJ1-31-230VAC Auxiliary contactor 3 makers, 1 breaker 230 V AC 10 A 1 pc(s)

TRU COMPONENTS TC-GYJ1-31-230VAC Auxiliary contactor 3 makers, 1 breaker 230 V AC 10 A 1 pc(s)

Conrad Electronic

Finder 22.32.0.024.4320 Contactor 2 makers 24 V DC, 24 V AC 25 A 1 pc(s)

Finder 22.32.0.024.4320 Contactor 2 makers 24 V DC, 24 V AC 25 A 1 pc(s)

Conrad Electronic

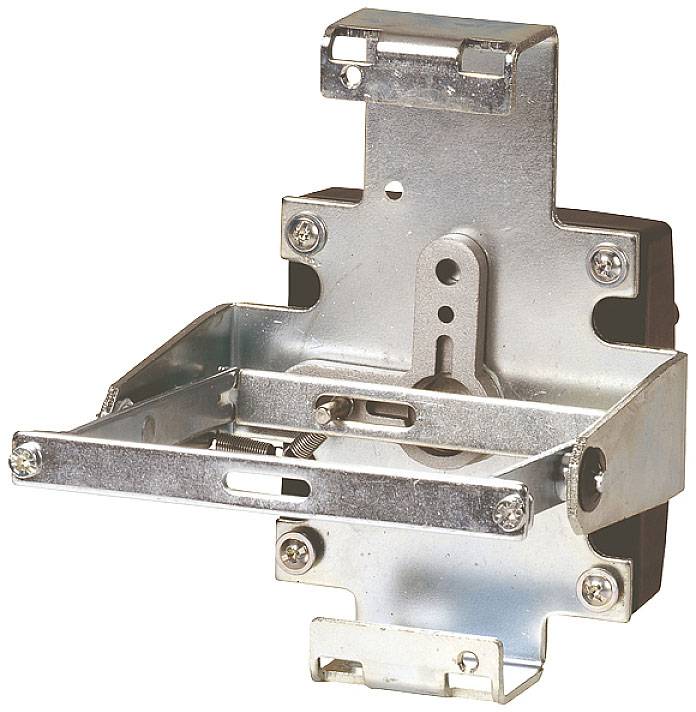

Eaton NZM1-XRAV Circuit breaker accessories 1 pc(s)

Eaton NZM1-XRAV Circuit breaker accessories 1 pc(s)

Conrad Electronic

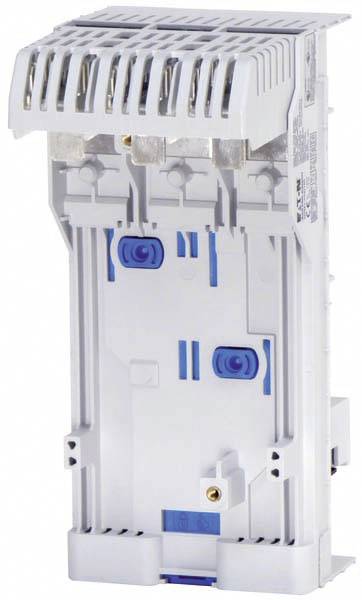

Eaton NZM1-XAD160 Adapter 1 pc(s)

Eaton NZM1-XAD160 Adapter 1 pc(s)

Conrad Electronic

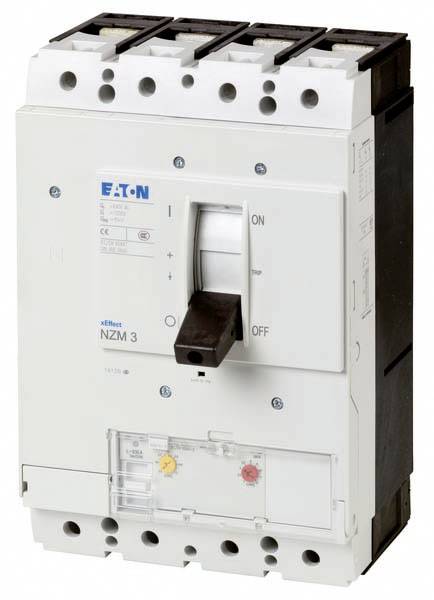

Eaton NZMN3-4-AE630 Circuit breaker 1 pc(s) Adjustment range (amperage): 630 - 630 A Switching voltage (max.): 690 V AC

Eaton NZMN3-4-AE630 Circuit breaker 1 pc(s) Adjustment range (amperage): 630 - 630 A Switching voltage (max.): 690 V AC

Conrad Electronic

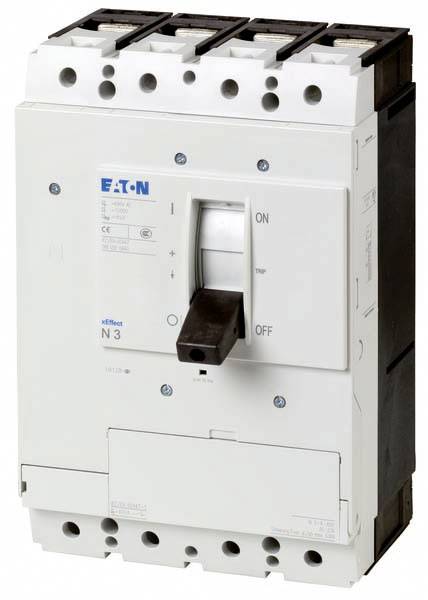

Eaton N3-4-630 Circuit breaker 1 pc(s) Switching voltage (max.): 690 V AC

Eaton N3-4-630 Circuit breaker 1 pc(s) Switching voltage (max.): 690 V AC

Conrad Electronic

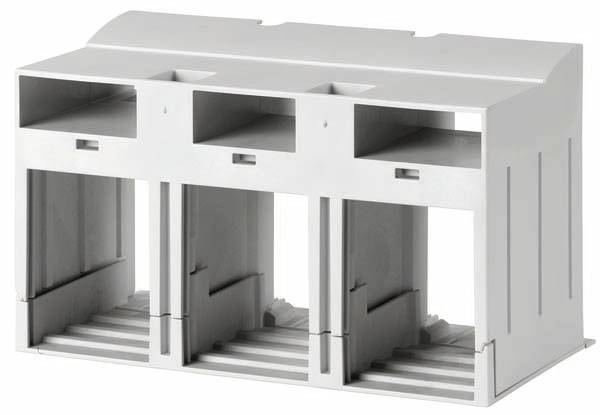

Eaton NZM4-XKSA Cover 1 pc(s)

Eaton NZM4-XKSA Cover 1 pc(s)

Conrad Electronic

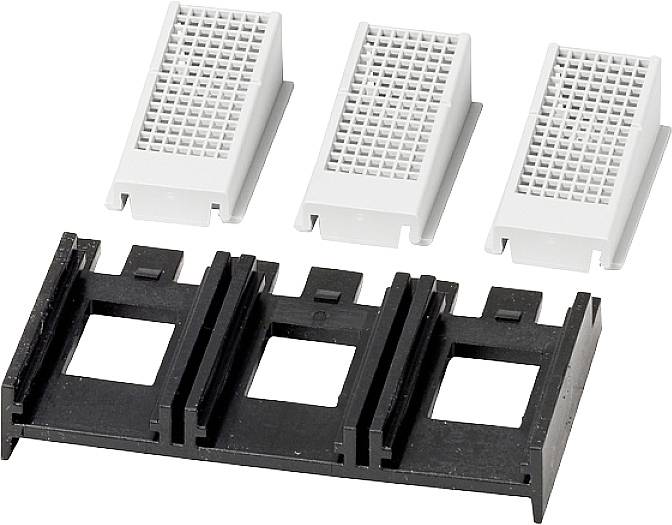

Eaton NZM1-XIPK Protective cover 1 pc(s)

Eaton NZM1-XIPK Protective cover 1 pc(s)

Conrad Electronic

Eaton NZM1-XTVD Door handle rotary actuator 1 pc(s)

Eaton NZM1-XTVD Door handle rotary actuator 1 pc(s)

Conrad Electronic

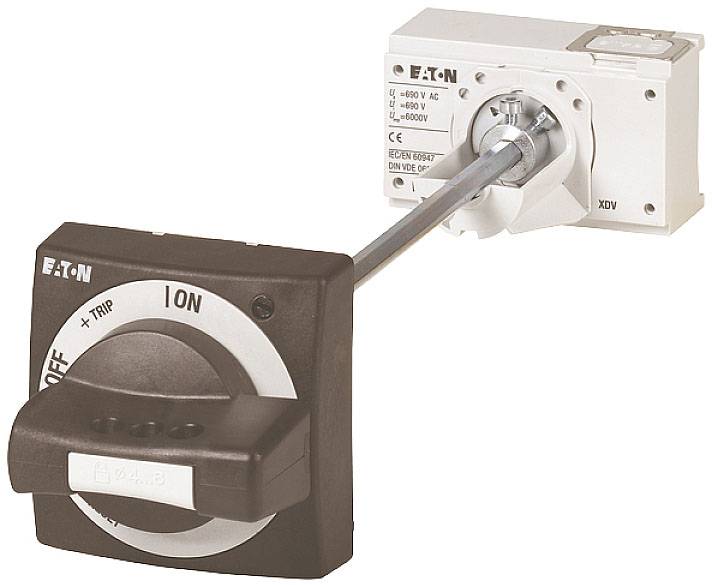

Eaton NZM1-XTVDV Door handle rotary actuator 1 pc(s)

Eaton NZM1-XTVDV Door handle rotary actuator 1 pc(s)

Conrad Electronic

Eaton DILM150-XHI11 Auxiliary switch 1 breaker, 1 maker pluggable 1 pc(s)

Eaton DILM150-XHI11 Auxiliary switch 1 breaker, 1 maker pluggable 1 pc(s)

Conrad Electronic

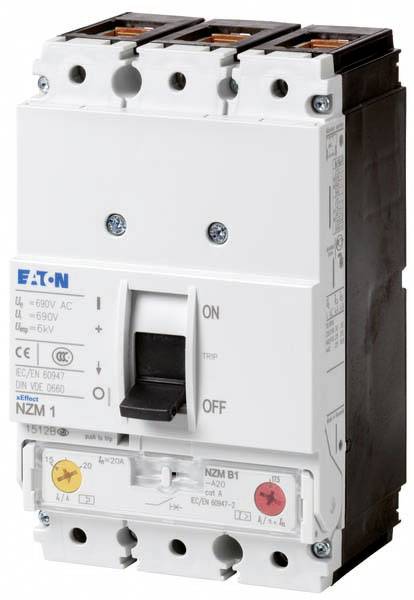

Eaton NZMN1-A125 Circuit breaker 1 pc(s) Adjustment range (amperage): 100 - 125 A Switching voltage (max.): 690 V AC
