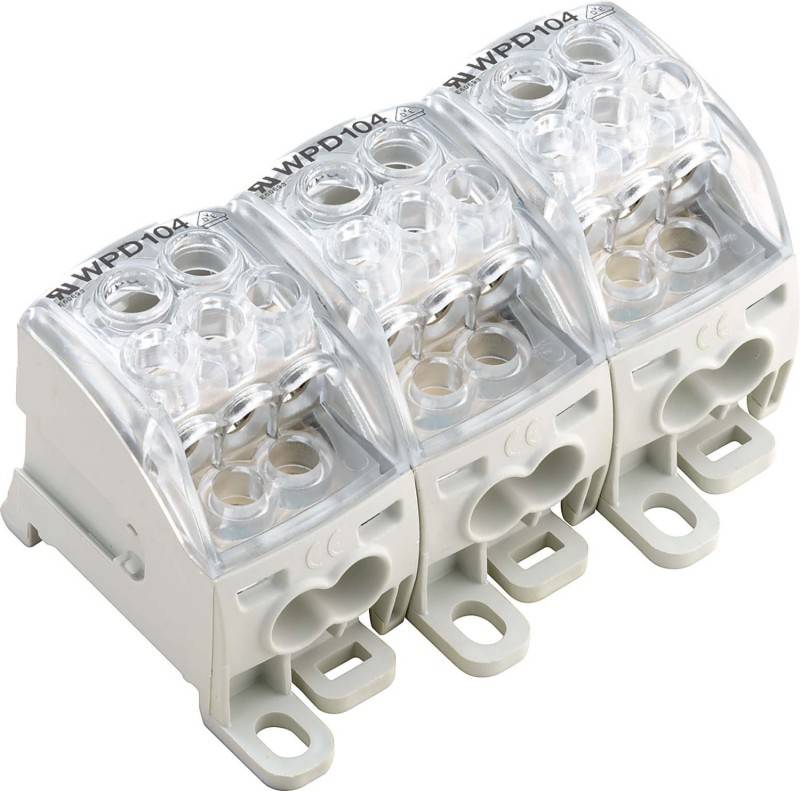

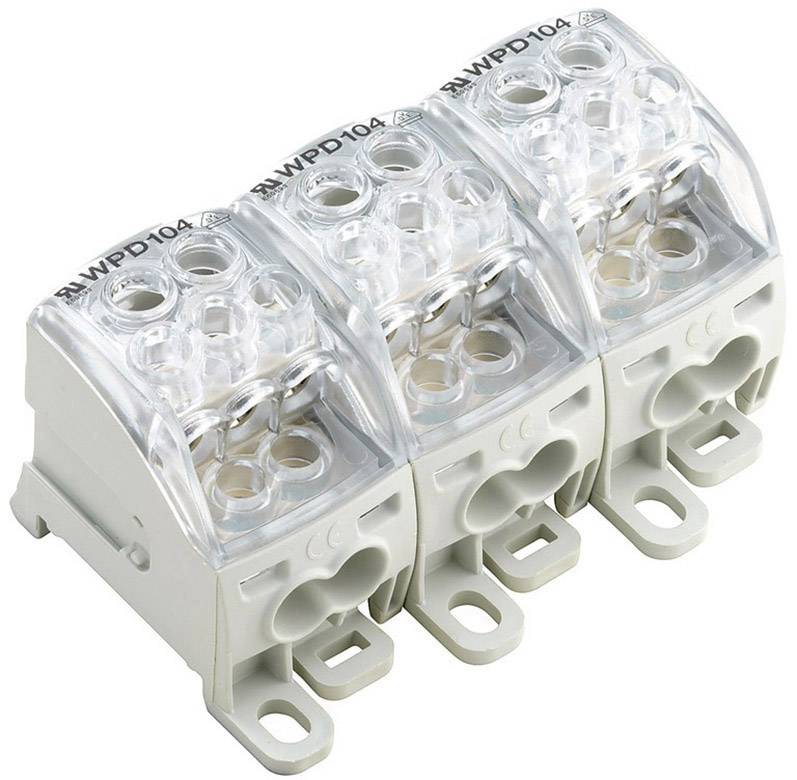

Weidmüller 1562160000 Distribution block Screws Grey, Transparent 1 pc(s)
EAN:
Part number:
Item no:
Connection
Screws
Cross section (flexible) (min.)
10 mm²
Cross section (flexible) (max.)
25 mm²
Cross section (inflexible) (min.)
10 mm²
Cross section (inflexible) (max.)
25 mm²
Datasheet (PDF)
5 Piece(s)
Sales and shipping:
Number
Total (€ 88.23 / piece)
€
Only 5 Piece(s) available
Technical specifications
- Connection
Screws
- Cross section (flexible) (min.)
10 mm²
- Cross section (flexible) (max.)
25 mm²
- Cross section (inflexible) (min.)
10 mm²
- Cross section (inflexible) (max.)
25 mm²
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Factory colour
Grey
Transparent
- Nominal current
101 A
- Nominal current - rounded value
101 A
- Nominal voltage
1000 V
- Manufacturer part #
1562160000
- Content
1 pc(s)
- Type
WPD 304 3X25/6X16+9X10 3XGY
- Dim
(L x W x H) 49 x 94.50 x 68 mm
- Width
94.50 mm
- Height
68 mm
- Length
49 mm
- RoHS-compliant
Yes
Direct mounting
Grey
94.5
68 mm
49 mm
1000 V
-50-130 °C
V0
FALSE
Screw connection
Other
1
6
TRUE
Thermoplastic
164 A
TRUE
- Product type
Distribution block
Documents & Downloads
Datasheet
Datasheet 1669230 Weidmüller 1562160000 Distribution block Screws Grey, Transparent 1 pc(s)
