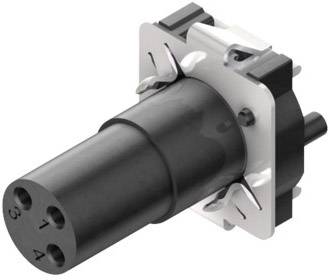

Image similar
Image similar
Weidmüller 2422140000 Sensor/actuator built-in connector M8 Socket, vertical vertical No. of pins (RJ): 8 25 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator built-in connector
Connector type
Socket, vertical vertical
Connector standard
SAI Weidmüller
Connection side A
Customisable
Connection side B
Customisable
Datasheet (PDF)
Sales and shipping:
Total (€ 9.58 / piece)
€
Technical specifications
- Type
SAID-M8B-8S-SMT
- Product type
Sensor/actuator built-in connector
- Connector type
Socket, vertical vertical
- Connector standard
SAI Weidmüller
- Connection side A
Customisable
- Connection side B
Customisable
- No. of pins
8
- Nominal voltage
30 V
- Nominal current
1.50 A
- Nominal current - rounded value
1.5 A
- Connection
SMT
Soldering
- Factory colour
Black
- Thread type connection side
M8
- Contact material
CuZn
IP67
- Min. temperature
-25 °C
- Max. temperature
+95 °C
- Seal type
Screw-on
- Manufacturer part #
2422140000
- Content
25 pc(s)
- RoHS-compliant
Yes
