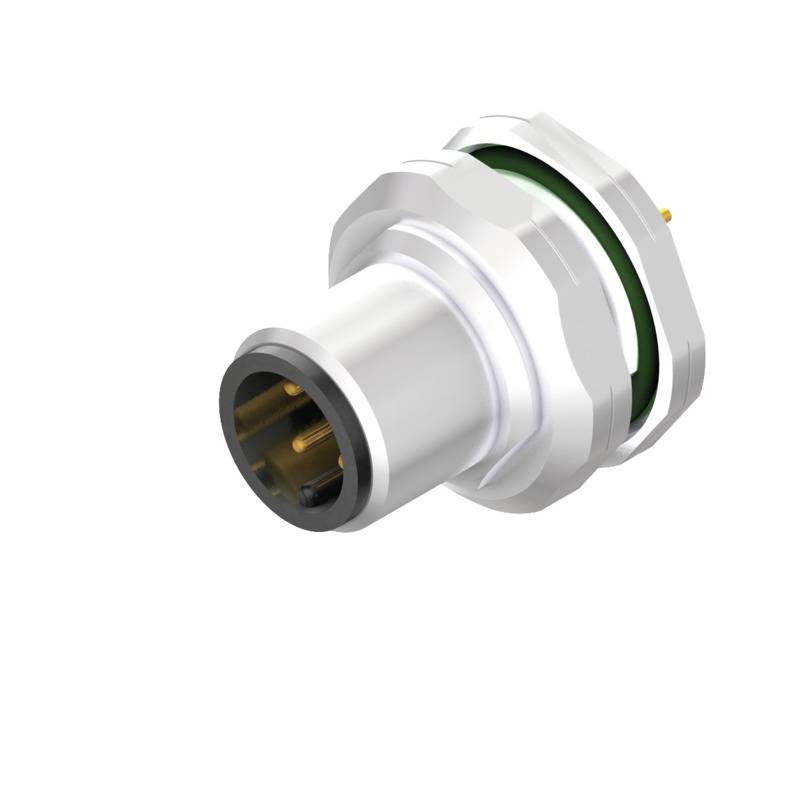

Image similar

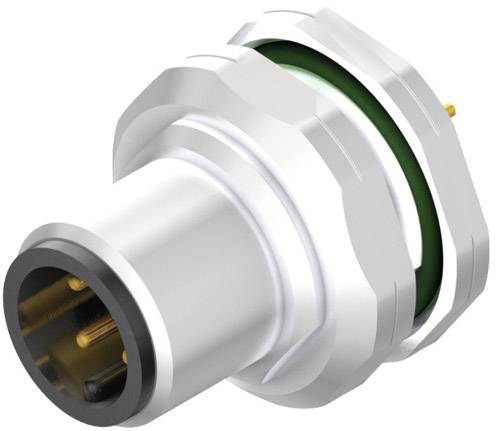

Image similar
Weidmüller 2422220000 Sensor/actuator built-in connector M12 Plug, vertical mount No. of pins (RJ): 8 10 pc(s) Piece
EAN:
Part number:
Item no:
Product type
Sensor/actuator built-in connector
Connector type
Plug, vertical mount
Connector standard
SAI Weidmüller
Connection side A
M12 plug, built-in
Connection side B
Customisable
Datasheet (PDF)
Number (Package size 10 pc(s))
Total (€ 12.18 / piece)
€ 121.84
plus VAT.
Technical specifications
- Packaging type
Piece
- Type
SAIE-M12S-8-H5.5TL-PG9
- Product type
Sensor/actuator built-in connector
- Connector type
Plug, vertical mount
- Connector standard
SAI Weidmüller
- Connection side A
M12 plug, built-in
- Connection side B
Customisable
- No. of pins
8
- Nominal voltage
30 V
- Nominal current
2 A
- Nominal current - rounded value
2 A
- Connection
Print
- Factory colour
Silver
- Thread type connection side
M12
- Thread type (wiring and installation)
M12
- Coding
A
- Contact material
CuZn
- Contact surface
Gold
- Sensor/actuator connectivity fittings
Rear panel fitting
IP67
- Min. temperature
-30 °C
- Max. temperature
+80 °C
- Seal type
Screw-on
- Manufacturer part #
2422220000
- Content
10 pc(s)
- RoHS-compliant
Yes
