Buy Weidmüller 2506090000 Distributor serial terminal Pull spring Beige 1 pc(s)

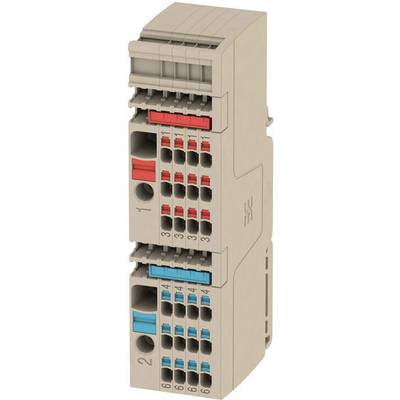

A terminal block with multiple connection points in red and blue for electrical connections, vertical view.

Image similar

Connection

Pull spring

Cross section (flexible) (min.)

0.50 mm²

Cross section (flexible) (max.)

6 mm²

Cross section (inflexible) (min.)

0.50 mm²

Cross section (inflexible) (max.)

6 mm²

Datasheet (PDF)

75 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Set(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Set(s)

Total (€ 23.52 / piece)

€

Report legal concerns

Highlights & Details

Distributor serial terminal

SET AAP11 6/1.5/12C

Technical specifications

Connection: Pull spring

Cross section (flexible) (min.): 0.50 mm²

Cross section (flexible) (max.): 6 mm²

Cross section (inflexible) (min.): 0.50 mm²

Cross section (inflexible) (max.): 6 mm²

AWG (min.): 22

AWG max.: 8

No. of rows: 1

Pins per row: 12

Number of pins: 12

Factory colour: Beige

Nominal current: 41 A

Nominal current - rounded value: 41 A

Nominal voltage: 500 V

Stripping length (max.): 12 mm

Manufacturer part #: 2506090000

Content: 1 pc(s)

Type: SET AAP11 6/1.5/12C

Dim: (L x W x H) 47 x 35 x 85.50 mm

Width: 35 mm

Height: 85.50 mm

Length: 47 mm

RoHS-compliant: Yes

Connector colour: Red

Flammability rating: V0

Product type: Distributor serial terminal

Documents & Downloads

Datasheet

Datasheet 1695278 Weidmüller 2506090000 Distributor serial terminal Pull spring Beige 1 pc(s)
