Buy Weidmüller 2526290000 HS-HF 3.2-6.4/12 MM W Heatshrink marker Fitting type: Slide-on Writing area: 11.30 x 12.70 mm Whit

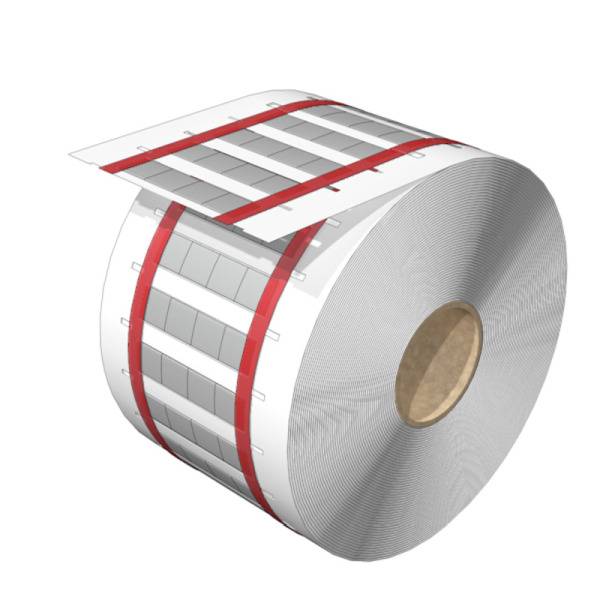

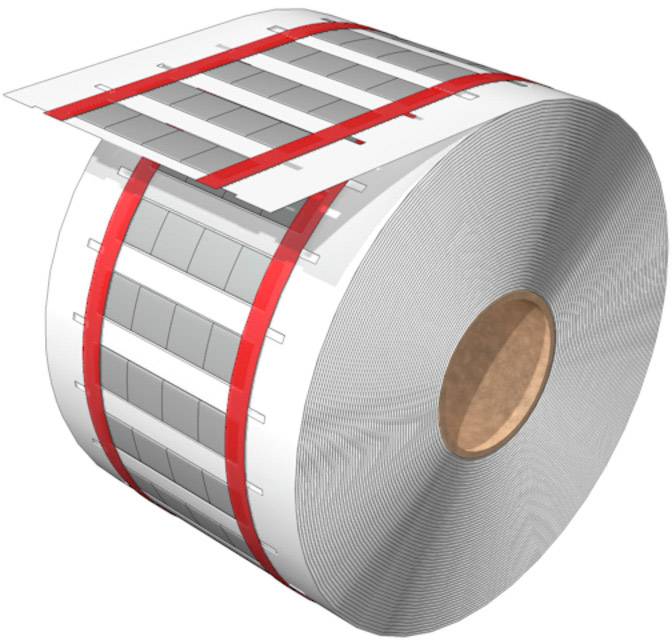

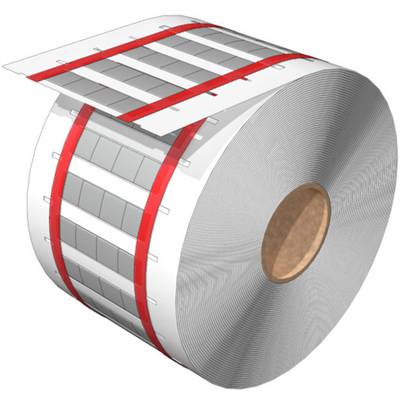

Large roll with white label sheets, stacked in multiple layers and secured with red bands.

Image similar

Product type

Heatshrink marker

Fitting type

Slide-on

Writing area length

11.30 mm

Writing area width

12.70 mm

Type

HS-HF 3.2-6.4/12 MM W

Datasheet (PDF)

Sales and shipping:

Total (€ 0.18 / piece)

€

Report legal concerns

Technical specifications

Depth: 0.77 mm
Net weight: 0.258 g
Conductor cross-section, max.: 1.5 mm²
Conductor cross-section, min.: 6 mm²

Type: HS-HF 3.2-6.4/12 MM W

Product type: Heatshrink marker

Fitting type: Slide-on

Writing area length: 11.30 mm

Writing area width: 12.70 mm

Writing area: 11.30 x 12.70 mm

Material: Polyolefin

Series: HS-HF

Min. temperature: -55 °C

Max. temperature: +105 °C

Suitable for outside Ø (min.): 3.2 mm

Suitable for outside Ø (max.): 6.4 mm

Factory colour: White

No. of markers: 4000

Dim: (W x H) 11.3 mm x 12.7 mm

Halogen-free: No

Industrial packaging: Yes

Content: 4000 pc(s)

Width: 11.3 mm

Height: 12.7 mm

RoHS-compliant: Yes

Variants(All information is without VAT, plus shipping costs)

Type

Writing area length

Weidmüller 2526290000 HS-HF 3.2-6.4/12 MM W Heatshrink marker Fitting type: Slide-on Writing area: 11.30 x 12.70 mm White No. of markers: 4000 4000 pc(s)

Item no:1671186

This article

HS-HF 3.2-6.4/12 MM W

11.30 mm

Weidmüller 2526230000 HS-HF 1.2-2.4/12 MM W Heatshrink marker Fitting type: Slide-on Writing area: 5 x 12.70 mm White No. of markers: 4000 4000 pc(s)

Item no:1671183

HS-HF 1.2-2.4/12 MM W

5 mm

Weidmüller 2526260000 HS-HF 1.6-3.2/12 MM Y Heatshrink marker Fitting type: Slide-on Writing area: 6.20 x 12.70 mm Yellow No. of markers: 4000 4000 pc(s)

Item no:1671184

HS-HF 1.6-3.2/12 MM Y

6.20 mm

Weidmüller 2526270000 HS-HF 2.4-4.8/12 MM W Heatshrink marker Fitting type: Slide-on Writing area: 8.70 x 12.70 mm White No. of markers: 4000 4000 pc(s)

Item no:1671185

HS-HF 2.4-4.8/12 MM W

8.70 mm

Weidmüller 2526310000 HS-HF 4.8-9.5/12 MM W Heatshrink marker Fitting type: Slide-on Writing area: 16.10 x 12.70 mm White No. of markers: 2000 2000 pc(s)

Item no:1671187

HS-HF 4.8-9.5/12 MM W

16.10 mm

Weidmüller 2526330000 HS-HF 6.4-12.7/12 MM W Heatshrink marker Fitting type: Slide-on Writing area: 20.90 x 12.70 mm White No. of markers: 2000 2000 pc(s)

Item no:1671188

HS-HF 6.4-12.7/12 MM W

20.90 mm

Weidmüller 2526240000 HS-HF 1.2-2.4/12 MM Y Heatshrink marker Fitting type: Slide-on Writing area: 5 x 12.70 mm Yellow No. of markers: 4000 4000 pc(s)

Item no:1671220

HS-HF 1.2-2.4/12 MM Y

5 mm

Weidmüller 2526250000 HS-HF 1.6-3.2/12 MM W Heatshrink marker Fitting type: Slide-on Writing area: 6.20 x 12.70 mm White No. of markers: 4000 4000 pc(s)

Item no:1671221

HS-HF 1.6-3.2/12 MM W

6.20 mm

Weidmüller 2526280000 HS-HF 2.4-4.8/12 MM Y Heatshrink marker Fitting type: Slide-on Writing area: 8.70 x 12.70 mm Yellow No. of markers: 4000 4000 pc(s)

Item no:1671222

HS-HF 2.4-4.8/12 MM Y

8.70 mm

Weidmüller 2526300000 HS-HF 3.2-6.4/12 MM Y Heatshrink marker Fitting type: Slide-on Writing area: 11.30 x 12.70 mm Yellow No. of markers: 4000 4000 pc(s)

Item no:1671223

HS-HF 3.2-6.4/12 MM Y

11.30 mm

Documents & Downloads

Datasheet

Datasheet 1671186 Weidmüller 2526290000 HS-HF 3.2-6.4/12 MM W Heatshrink marker Fitting type: Slide-on Writing area: 11.30 x 12.70 mm Whit

User & Safety Instructions

User & Safety Instructions 1671186 Weidmüller 2526290000 HS-HF 3.2-6.4/12 MM W Heatshrink marker Fitting type: Slide-on Writing area: 11.30 x 12.70 mm Whit
