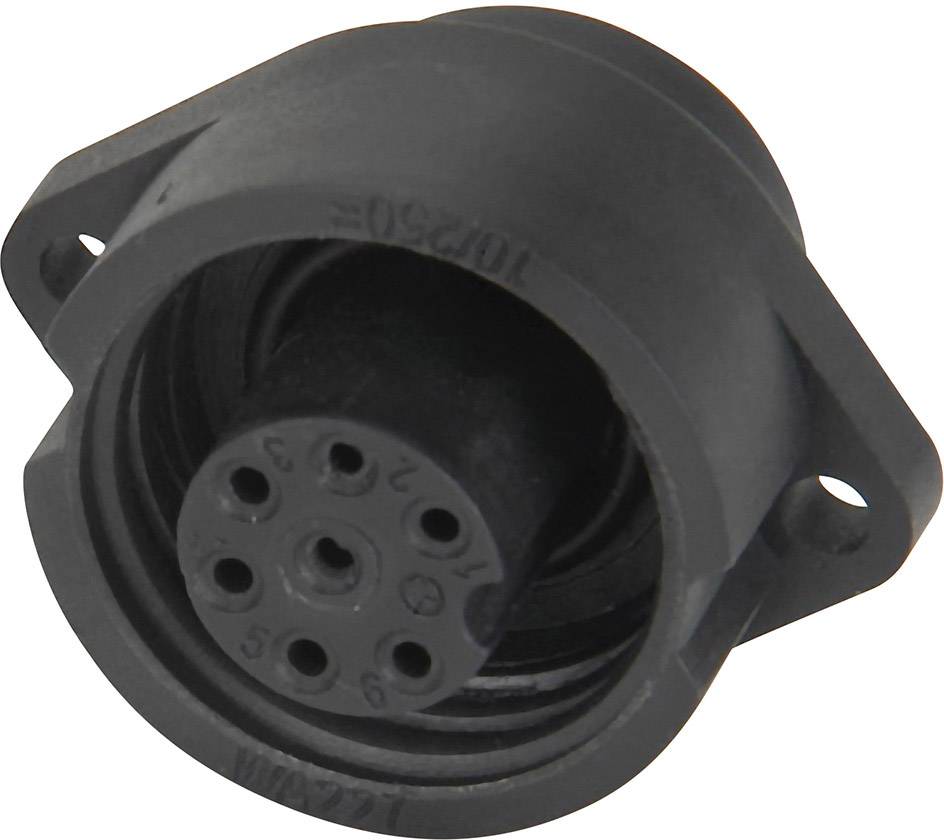

Weipu 814063 Bullet connector Socket, vertical vertical Total number of pins: 6 + PE Series (round connectors): WA 1 pc(
EAN:
Part number:
Item no:
Product type
Bullet connector
Connector type
Socket, vertical vertical
Total no. of pins
6 + PE
Connection
Soldering
Content
1 pc(s)
Datasheet (PDF)
73 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.45
5
6% = € 0.32
€ 5.13
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.45 / piece)
€
Technical specifications
- Type
814063
- Product type
Bullet connector
- Connector type
Socket, vertical vertical
- Total no. of pins
6 + PE
- Connection
Soldering
- Factory colour
Black
- Content
1 pc(s)
- Max. temperature
+105 °C
- Nominal current
10 A
- Min. temperature
-40 °C
- Nominal current - rounded value
10 A
- Leading contact (PE)
Yes
- Nominal voltage
250 V
- Contact material
Brass gold plated
- Case material
Polyamide 6.6
18
- Connection angle
180°
- Mounting hole diameter
21.5 mm
- Manufacturer part #
814063
- Number of pins
6
- max. cross section
0.75 mm²
- Cross-section range
0.75 mm² (max)
- RoHS-compliant
Yes
IP67 (when connected)
- Series
WA
Documents & Downloads
Datasheet
Datasheet 1289674 Weipu 814063 Bullet connector Socket, vertical vertical Total number of pins: 6 + PE Series (round connectors): WA 1 pc(
Information
Information 1289674 Weipu 814063 Bullet connector Socket, vertical vertical Total number of pins: 6 + PE Series (round connectors): WA 1 pc(
Description
Round connector series WA22 with screw locking correspond with the make and concept of the high requirements for the use in the industrial technology. A compact and secure connection when a degree of sealing against the environment is required. The main application fields for series WA22 can be found in the plant construction and mechanical engineering, measurement and control technology, drive technology as well as the medical technology.
