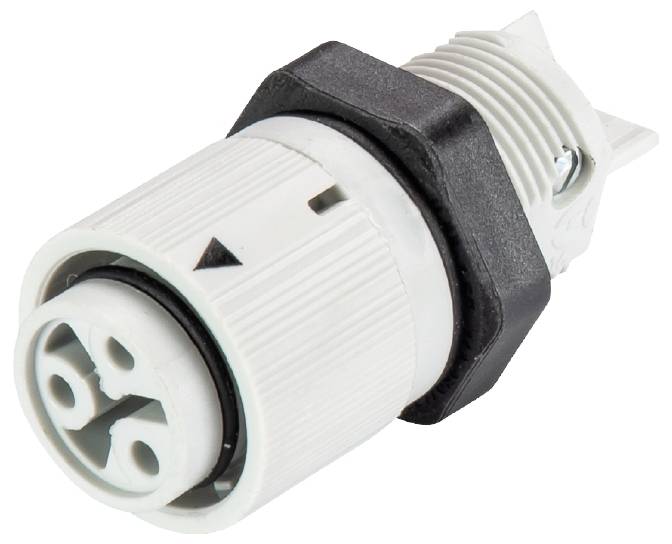

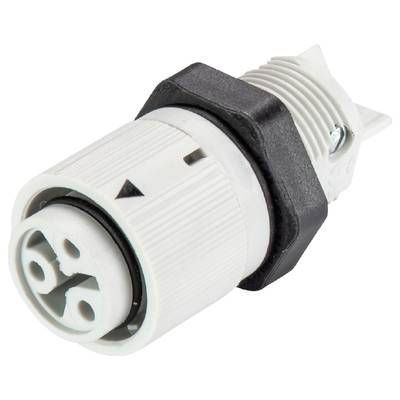

Wieland Electric 46.031.5053.0 Appliance connector
EAN:
Part number:
Item no:
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.87
3
5% = € 0.32
€ 5.55
5
8% = € 0.45
€ 5.42
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.87 / piece)
€
Technical specifications
- Product type
Appliance connector
- Type A
Socket
- Connector version
straight
- Connection
Screw connection
- Rated voltage
250 V
- Test current
16 A
- Number of pins
3
IP66
19.9 mm
Bus
TRUE
19.9 mm
Screw connection
Integrated in plug-in connector
16 A
250 V
3
41.9 mm
Polyamide (PA)
Silver-plated
3
Straight
4 kV
0.75 mOhm
CuZn
M16
IP66
1
L, N, PE
Grey
0.061 kWh
0.25-2.5 mm²
0.25-2.5 mm²
100 °C
7035
Description
RST® MINI device connection
Standard
straight
M16
Number of poles: 3
Socket version
Connection type: screw terminals.
Rated voltage: 250 V
Rated current 16 A
Coding color / contact insert light GRAY
This text is machine translated.
Standard
straight
M16
Number of poles: 3
Socket version
Connection type: screw terminals.
Rated voltage: 250 V
Rated current 16 A
Coding color / contact insert light GRAY
This text is machine translated.
