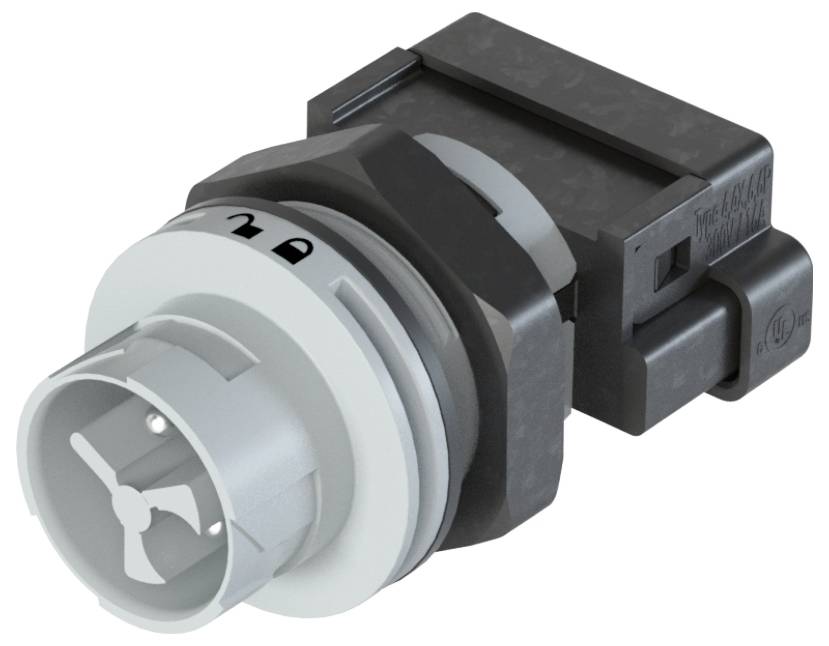

Wieland Electric 46.032.M0L0.0 Appliance connector
EAN:
Part number:
Item no:
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 7.55
3
5% = € 0.41
€ 7.14
5
8% = € 0.58
€ 6.97
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 7.55 / piece)
€
Technical specifications
- Type A
Plug
- Connector version
straight
- Connection
Spring-loaded terminal
IP66
- Number of pins
3
- Test current
16 A
- Rated voltage
250 V
29.3 mm
Plug
TRUE
24 mm
Spring clamp connection
Integrated in plug-in connector
16 A
250 V
3
43.5 mm
Polyamide (PA)
Silver-plated
3
Straight
4 kV
CuZn
M20
IP66
2
L, N, PE
Grey
0.068 kWh
0.5-2.5 mm²
0.5-2.5 mm²
100 °C
7035
- Product type
Appliance connector
Description
RST® MINI device connection
Modular
straight
M20
Number of poles: 3
Plug version
Spring-loaded terminal connection type
Rated voltage: 250 V
Rated current 16 A
Contact seal yes
Coding color / contact insert light GRAY
This text is machine translated.
Modular
straight
M20
Number of poles: 3
Plug version
Spring-loaded terminal connection type
Rated voltage: 250 V
Rated current 16 A
Contact seal yes
Coding color / contact insert light GRAY
This text is machine translated.
