Wieland Electric 92.953.4057.0 Connector
EAN:
Part number:
Item no:
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 7.13
3
5% = € 0.38
€ 6.75
5
8% = € 0.54
€ 6.59
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 7.13 / piece)
€
Technical specifications
- Product type
Connector
- Type A
Socket
- Connection
Screw connection
- Rated voltage
250 V
- Test current
20 A
- Cable Ø (max.)
12 mm
- Cable Ø up to
7 mm
- Cable Ø range
7 - 12 mm
- Number of pins
5
IP40
47.75 mm
Bus
TRUE
15 mm
Screw connection
Integrated in plug-in connector
20 A
250 V
TRUE
5
76.4 mm
Polyamide (PA)
7-12 mm
Silver-plated
2
TRUE
4 kV
0.4 mOhm
CuZn
IP40
1
3, N, PE, 2, 1
White
0.172 kWh
0.75-2.5 mm²
0.75-2.5 mm²
100 °C
Description

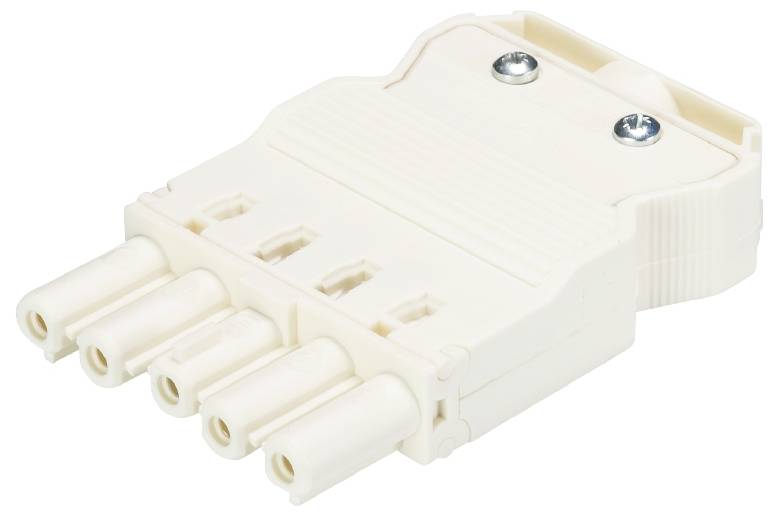

Gesis® CLASSIC connector
Number of pins: 5
Socket
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 20 A
Cable diameter 7 - 12 mm
Coding color / contact insert no-flame white
This text is machine translated.
Number of pins: 5
Socket
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 20 A
Cable diameter 7 - 12 mm
Coding color / contact insert no-flame white
This text is machine translated.
