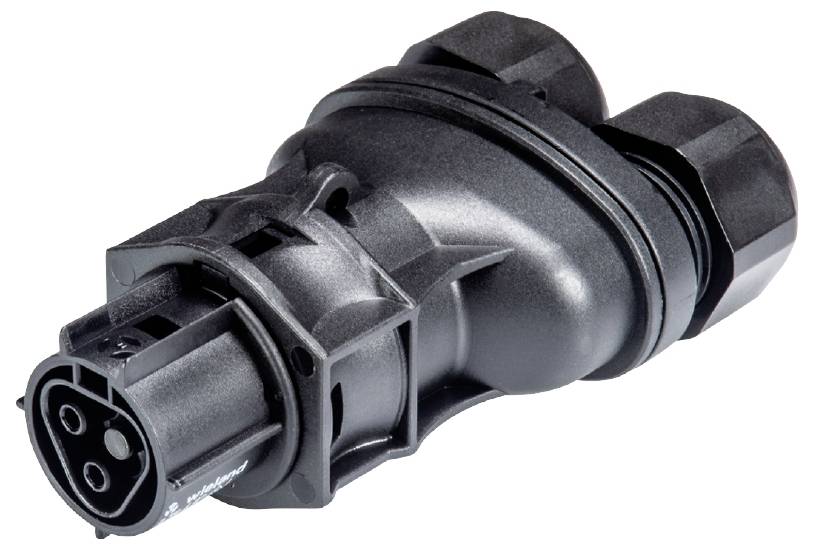

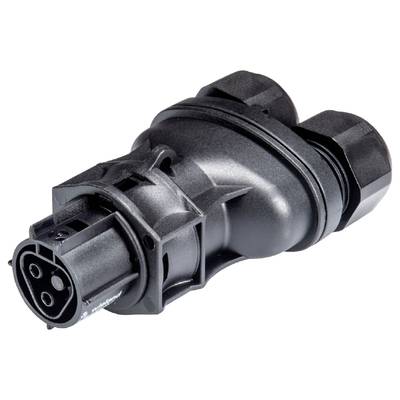

Wieland Electric 96.021.0353.1 Connector
EAN:
Part number:
Item no:
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 15.12
3
4% = € 0.67
€ 14.45
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 15.12 / piece)
€
Technical specifications
- Product type
Connector
- Type A
Socket
- Connection
Spring-loaded terminal
- Rated voltage
250 V
- Test current
20 A
- Cable Ø (max.)
14 mm
- Cable Ø up to
10 mm
- Cable Ø range
10 - 14 mm
- Number of pins
2
IP66
59 mm
Bus
TRUE
38 mm
Spring clamp connection
Integrated in plug-in connector
20 A
250 V
TRUE
2
97 mm
Polyamide (PA)
10-14 mm
Silver-plated
3
4 kV
0.8 mOhm
CuZn
IP66
2
L, N
Black
0.518 kWh
0.5-1.5 mm²
0.5-2.5 mm²
100 °C
9005
Description
RST® CLASSIC connectors
Double connector
Number of poles: 2
Socket
Spring-loaded terminal connection type
Rated voltage: 250 V
Rated current 20 A
Cable diameter 10 - 14 mm
Coding color / contact insert black
This text is machine translated.
Double connector
Number of poles: 2
Socket
Spring-loaded terminal connection type
Rated voltage: 250 V
Rated current 20 A
Cable diameter 10 - 14 mm
Coding color / contact insert black
This text is machine translated.
