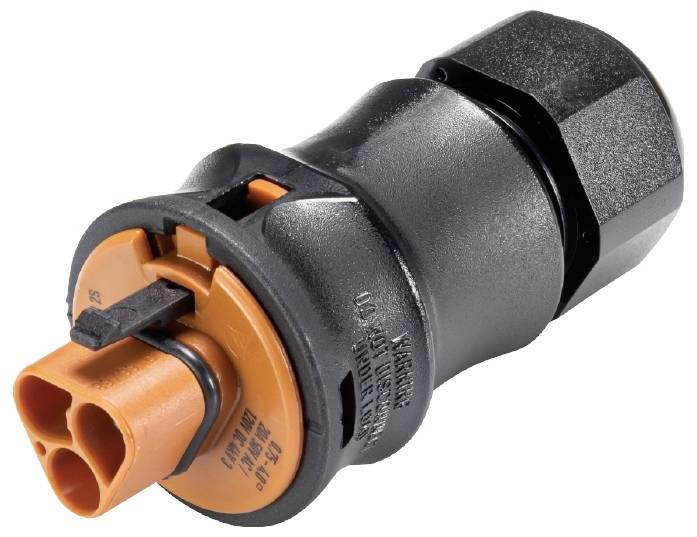

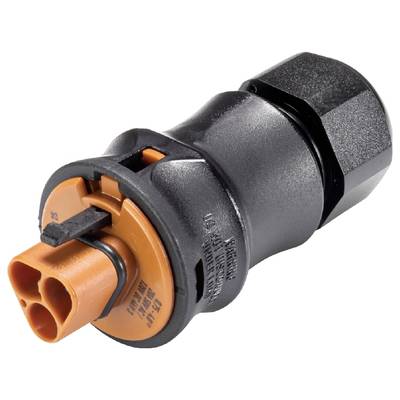

Wieland Electric 96.022.4051.4 Connector
EAN:
Part number:
Item no:
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 7.13
3
5% = € 0.38
€ 6.75
5
8% = € 0.54
€ 6.59
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 7.13 / piece)
€
Technical specifications
- Product type
Connector
- Type A
Plug
- Connection
Screw connection
- Rated voltage
50 V
- Test current
20 A
- Cable Ø (max.)
10 mm
- Cable Ø up to
6 mm
- Cable Ø range
6 - 10 mm
- Number of pins
2
IP66
34.6 mm
Plug
TRUE
34.6 mm
Screw connection
Integrated in plug-in connector
20 A
50 V
TRUE
2
79.1 mm
Polyamide (PA)
6-10 mm
Silver-plated
3
4 kV
0.55 mOhm
CuZn
IP66
1
1, 2
Other
0.272 kWh
0.75-6 mm²
0.75-6 mm²
100 °C
8002
Description
RST® CLASSIC connectors
straight
Number of poles: 2
Connector
Connection type: screw terminals.
Rated voltage 50 V / 120 V
Rated current 20 A
Cable diameter 6 - 10 mm
Coding color / contact insert signal brown
This text is machine translated.
straight
Number of poles: 2
Connector
Connection type: screw terminals.
Rated voltage 50 V / 120 V
Rated current 20 A
Cable diameter 6 - 10 mm
Coding color / contact insert signal brown
This text is machine translated.
