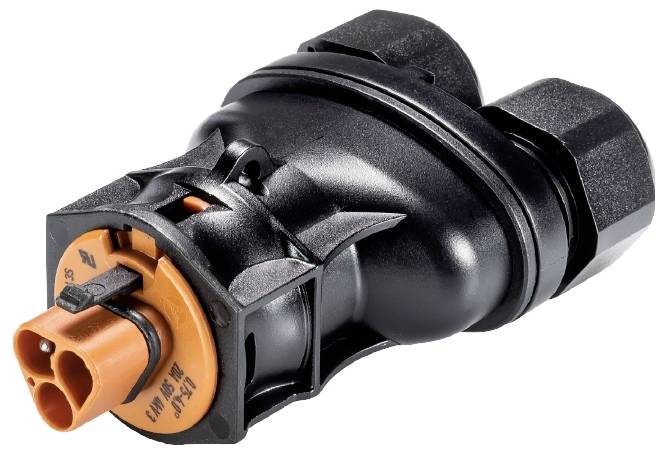

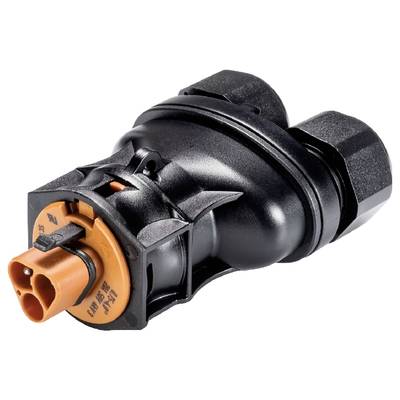

Wieland Electric 96.032.0351.4 Connector
EAN:
Part number:
Item no:
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 15.96
3
5% = € 0.72
€ 15.24
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 15.96 / piece)
€
Technical specifications
- Type A
Plug
- Connection
Spring-loaded terminal
- Cable Ø range
10 - 14 mm
IP66
- Number of pins
3
- Test current
20 A
- Rated voltage
50 V
- Cable Ø (max.)
14 mm
- Cable Ø up to
10 mm
59 mm
Plug
TRUE
38 mm
Spring clamp connection
Integrated in plug-in connector
20 A
50 V
TRUE
3
93 mm
Polyamide (PA)
10-14 mm
Silver-plated
3
4 kV
0.8 mOhm
CuZn
IP66
2
1, 2, PE
Other
0.496 kWh
0.5-1.5 mm²
0.5-2.5 mm²
100 °C
8002
- Product type
Connector
Description
RST® CLASSIC connectors
Double connector
Number of poles: 3
Connector
Spring-loaded terminal connection type
Rated voltage 50 V / 120 V
Rated current 20 A
Cable diameter 10 - 14 mm
Coding color / contact insert signal brown
This text is machine translated.
Double connector
Number of poles: 3
Connector
Spring-loaded terminal connection type
Rated voltage 50 V / 120 V
Rated current 20 A
Cable diameter 10 - 14 mm
Coding color / contact insert signal brown
This text is machine translated.
