Buy Wieland Electric 96.452.2033.1 Cable Black

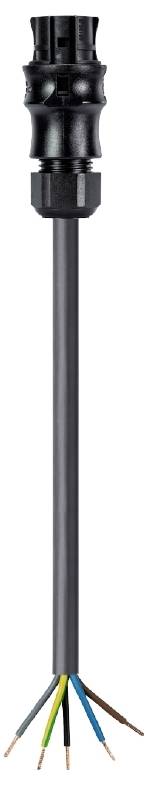

Black, multi-core cable connector with a plug at the top; several coloured, insulated wires are exposed at the bottom end.

Sales and shipping:

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 25.20 / piece)

€

Report legal concerns

Technical specifications

Type A: Socket

Type B: Open cable ends

Factory colour: Black

Cable Ø range: 12.1 - 12.3 mm

: IP66

Number of pins: 5

Test current: 16 A

Rated voltage: 250 V

Cable Ø (max.): 12.3 mm

Cable Ø up to: 12.1 mm

: FALSE

: 1.5 mm²

: H07RN-F

: Black

: Integrated in plug-in connector

: 16 A

: 250 V

: 2000 m

: 5

: Polyamide (PA)

: Black

: 12.1-12.3 mm

: Silver-plated

: 3

: TRUE

: 4 kV

: 23.35 mΩ

: CuZn

: IP66

: 3, N, PE, 2, 1

: Black

: 2531

: 9 mm

: 35

: Device connection cable

: Bus

: Free conductor end

: 100 °C

: Ultrasonic compressed wire ends

: 60 °C

: Eca

: None

: None

: None

: 9005

Product type: Cable

Description

RST® CLASSIC connection cable
Socket - free cable end
Number of pins: 5
Rated voltage 250 V / 400 V
Rated current 16 A
Cable type H07RN-F
Total length 2 m
Conductor nominal cross-section 1.5 mm²
Coding color / contact insert black

This text is machine translated.
