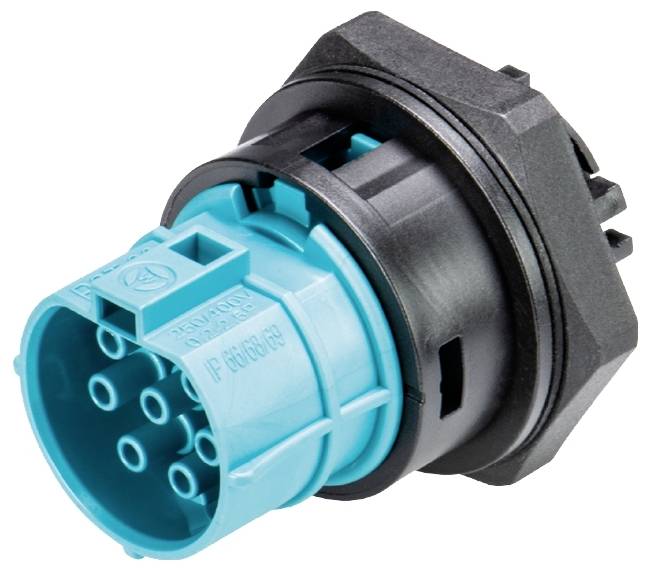

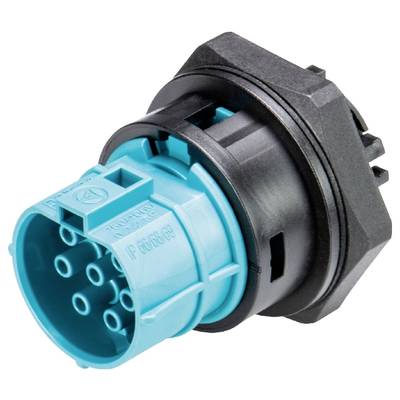

Wieland Electric 9L.171.2353.6 Appliance connector
EAN:
Part number:
Item no:
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 11.76
3
5% = € 0.59
€ 11.17
5
7% = € 0.82
€ 10.94
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 11.76 / piece)
€
Technical specifications
- Type A
Socket
- Connector version
straight
- Connection
Crimp
IP66
- Number of pins
7
- Test current
20 A
- Rated voltage
250 V
40 mm
Bus
TRUE
40 mm
Crimp
Integrated in plug-in connector
20 A
250 V
7
53.3 mm
Polyamide (PA)
Silver-plated
3
Straight
4 kV
0.65 mOhm
CuZn
M32
IP66
1
Blue
Black
0.75-2.5 mm²
100 °C
5018
- Product type
Appliance connector
Description
RST® CLASSIC device connection
Modular
straight
M32
Number of poles 7
Socket version
Connection type crimp
Rated voltage 250 V / 400 V
Rated current 20 A
Contact seal yes
Coding color / contact insert, turquoise
This text is machine translated.
Modular
straight
M32
Number of poles 7
Socket version
Connection type crimp
Rated voltage 250 V / 400 V
Rated current 20 A
Contact seal yes
Coding color / contact insert, turquoise
This text is machine translated.
