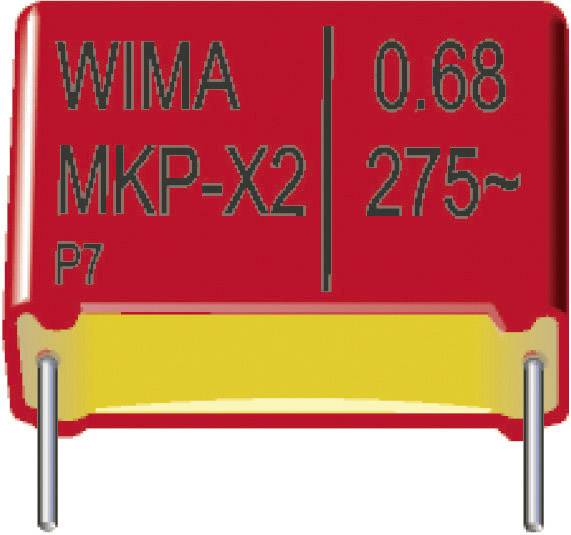

Image similar
Wima MKP1J036806F00KSSD 1 pc(s) MKP thin film capacitor Radial lead 0.68 µF 630 V DC 20 % 27.5 mm (L x W x H) 31.5 x 15
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.18
10
7% = € 0.23
€ 2.95
25
10% = € 0.33
€ 2.85
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.18 / piece)
€
Technical specifications
- Plastic housing coating UL 94 V-0
- Test class according to IEC 55/100/56
- Insulation values> = 5 x 10 5 MΩ/1000000 s (average)
- Loss factors ≤ 3 x 10-4 @1kHz
- Reliability λ< 5 fit.
- Type
Radial lead
- Capacity (elec.)
0.68 µF
- Nominal voltage
630 V DC
- Flank steepness
700 V/µs
- Tolerance ±
20 %
- Connection
Solder pins
- Length
31.5 mm
- Width
15 mm
- Height
26 mm
- CS
27.5 mm
- Min. temperature
-55 °C
- Max. temperature
+100 °C
- Content
1 pc(s)
- Dim
(L x W x H) 31.5 x 15 x 26 mm
- Cable Ø range
- Type
MKP1J036806F00KSSD
- Nominal voltage (details)
630 V/DC/400 V AC
- RoHS-compliant
Yes
- Dielectric
Double-sided metallised polypropylene foil
- Product type
MKP thin film capacitor
Variants(All information is without VAT, plus shipping costs)
Dim
Wima MKP 10 0,022uF 10% 1000V RM22,5 1 pc(s) MKP thin film capacitor Radial lead 0.022 µF 1000 V DC 10 % 22.5 mm (L x W x H) 26.5 x 6 x 15 mm
(L x W x H) 26.5 x 6 x 15 mm
Minimum order quantity: 3
Multiple: 1
€ 0.72*
Wima MKP 10 0,015uF 10% 1600V RM15 1 pc(s) MKP thin film capacitor Radial lead 0.015 µF 1600 V DC 10 % 15 mm (L x W x H) 18 x 6 x 12.5 mm
(L x W x H) 18 x 6 x 12.5 mm
Minimum order quantity: 7
Multiple: 1
€ 0.48*
Wima MKP 10 0,015uF 20% 630V RM10 1 pc(s) MKP thin film capacitor Radial lead 0.015 µF 630 V DC 20 % 10 mm (L x W x H) 13 x 5 x 11 mm
(L x W x H) 13 x 5 x 11 mm
Minimum order quantity: 7
Multiple: 1
€ 0.38*
Wima MKP 10 0,01uF 20% 400V RM10 1 pc(s) MKP thin film capacitor Radial lead 0.01 µF 400 V DC 20 % 10 mm (L x W x H) 13 x 4 x 9 mm
(L x W x H) 13 x 4 x 9 mm
Minimum order quantity: 100
Multiple: 100
€ 0.22*
Wima MKP 10 0,022uF 10% 400V RM10 1 pc(s) MKP thin film capacitor Radial lead 0.022 µF 400 V DC 10 % 10 mm (L x W x H) 13 x 4 x 9 mm
(L x W x H) 13 x 4 x 9 mm
Minimum order quantity: 10
Multiple: 1
€ 0.32*
Wima MKP 10 0,01uF 5% 630V RM10 1 pc(s) MKP thin film capacitor Radial lead 0.01 µF 630 V DC 5 % 10 mm (L x W x H) 13 x 4 x 9 mm
(L x W x H) 13 x 4 x 9 mm
Minimum order quantity: 7
Multiple: 1
€ 0.39*
Wima MKP 10 0,01uF 10% 250V RM 7,5 1 pc(s) MKP thin film capacitor Radial lead 0.01 µF 250 V DC 10 % 7.5 mm (L x W x H) 10 x 4 x 9 mm
(L x W x H) 10 x 4 x 9 mm
Minimum order quantity: 10
Multiple: 1
€ 0.32*
Wima MKP 10 0,015uF 10% 630V RM15 1 pc(s) MKP thin film capacitor Radial lead 0.015 µF 630 V DC 10 % 15 mm (L x W x H) 18 x 5 x 11 mm
(L x W x H) 18 x 5 x 11 mm
Minimum order quantity: 7
Multiple: 1
€ 0.41*
Wima MKP 10 0,01uF 10% 2000V RM15 1 pc(s) MKP thin film capacitor Radial lead 0.01 µF 2000 V DC 10 % 15 mm (L x W x H) 18 x 7 x 14 mm
(L x W x H) 18 x 7 x 14 mm
Minimum order quantity: 5
Multiple: 1
€ 0.36*
Wima MKP 10 0,01uF 10% 400V RM10 1 pc(s) MKP thin film capacitor Radial lead 0.01 µF 400 V DC 10 % 10 mm (L x W x H) 13 x 4 x 9 mm
(L x W x H) 13 x 4 x 9 mm
Minimum order quantity: 10
Multiple: 1
€ 0.32*
Documents & Downloads
Datasheet
Datasheet 450379 Wima MKP1J036806F00KSSD 1 pc(s) MKP thin film capacitor Radial lead 0.68 µF 630 V DC 20 % 27.5 mm (L x W x H) 31.5 x 15
User & Safety Instructions
User & Safety Instructions 450379 Wima MKP1J036806F00KSSD 1 pc(s) MKP thin film capacitor Radial lead 0.68 µF 630 V DC 20 % 27.5 mm (L x W x H) 31.5 x 15
