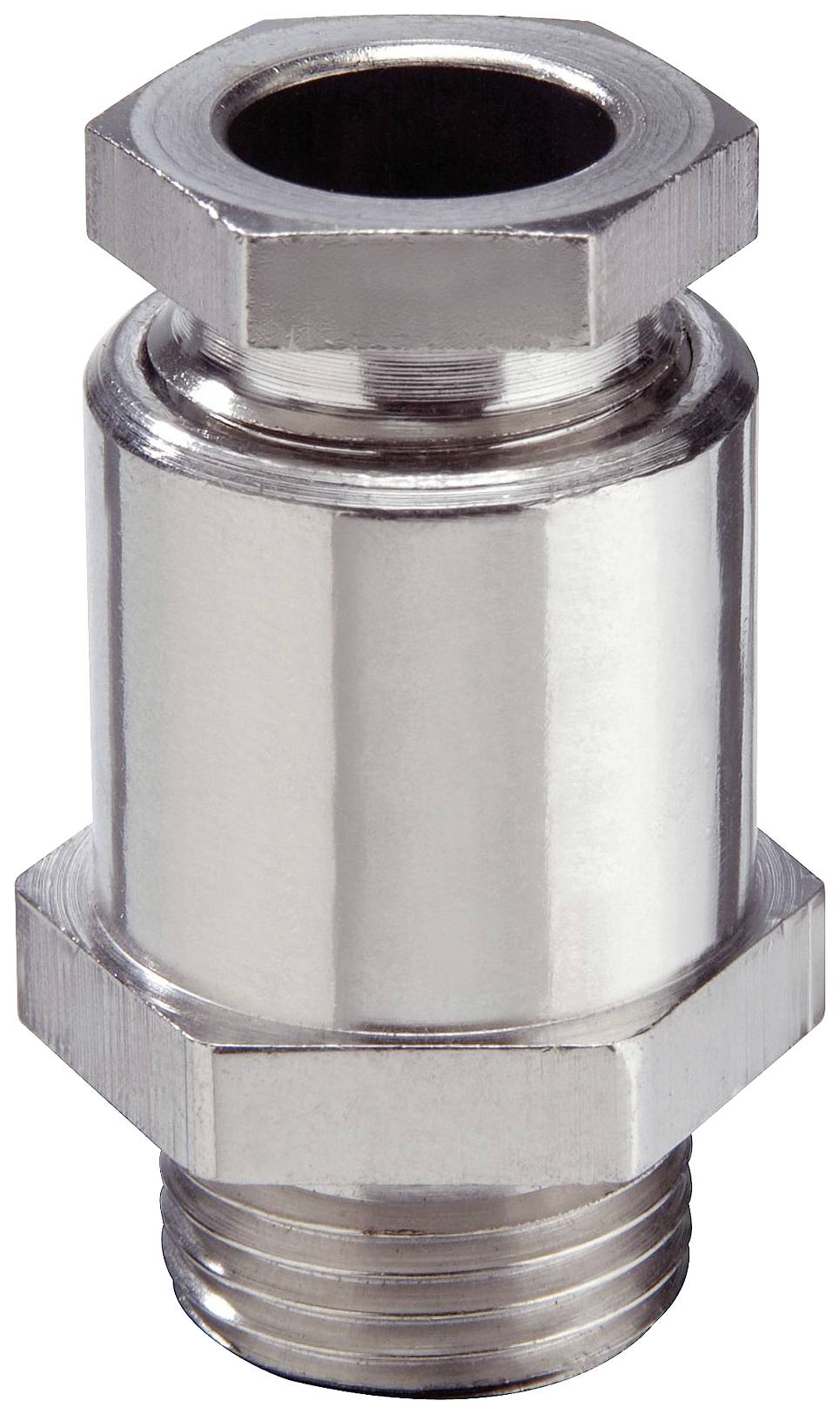

Wiska 10014298 Cable gland shockproof, with seal M50 Brass (Ni-plated) Ecru 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
M50
Type
straight
Material
Brass (Ni-plated)
Clamp Ø
28 mm
Technical specifications
- Thread pitch 1.5 mm
- Hexagonal corner dimensions 53 mm
- Type of seal: Sealing ring
- EMC design: Yes
- Shielded: Yes
- Product type
Cable gland
- Features
shockproof
with seal
- Factory colour
Ecru
- External thread
M50
- Type
straight
- Material
Brass (Ni-plated)
- Clamp Ø
28 mm
- Terminal Ø (max.)
30.5 mm
- Thread length
14 mm
- Min. temperature
-40 °C
- Max. temperature
+100 °C
IP54
- Spanner size
46 mm
- Halogen-free
Yes
- Content
1 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
10014298
- Type
EKVM 45/50-Z30 Ni
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2476977 Wiska 10014298 Cable gland shockproof, with seal M50 Brass (Ni-plated) Ecru 1 pc(s)
Description
EMC cable entry according to DIN 89280 for shielded cables.
This robust cable entry is particularly suitable for use in harsh industrial environments.
The seals have good resistance to ozone, weather and aging influences.
This text is machine translated.
This robust cable entry is particularly suitable for use in harsh industrial environments.
The seals have good resistance to ozone, weather and aging influences.
