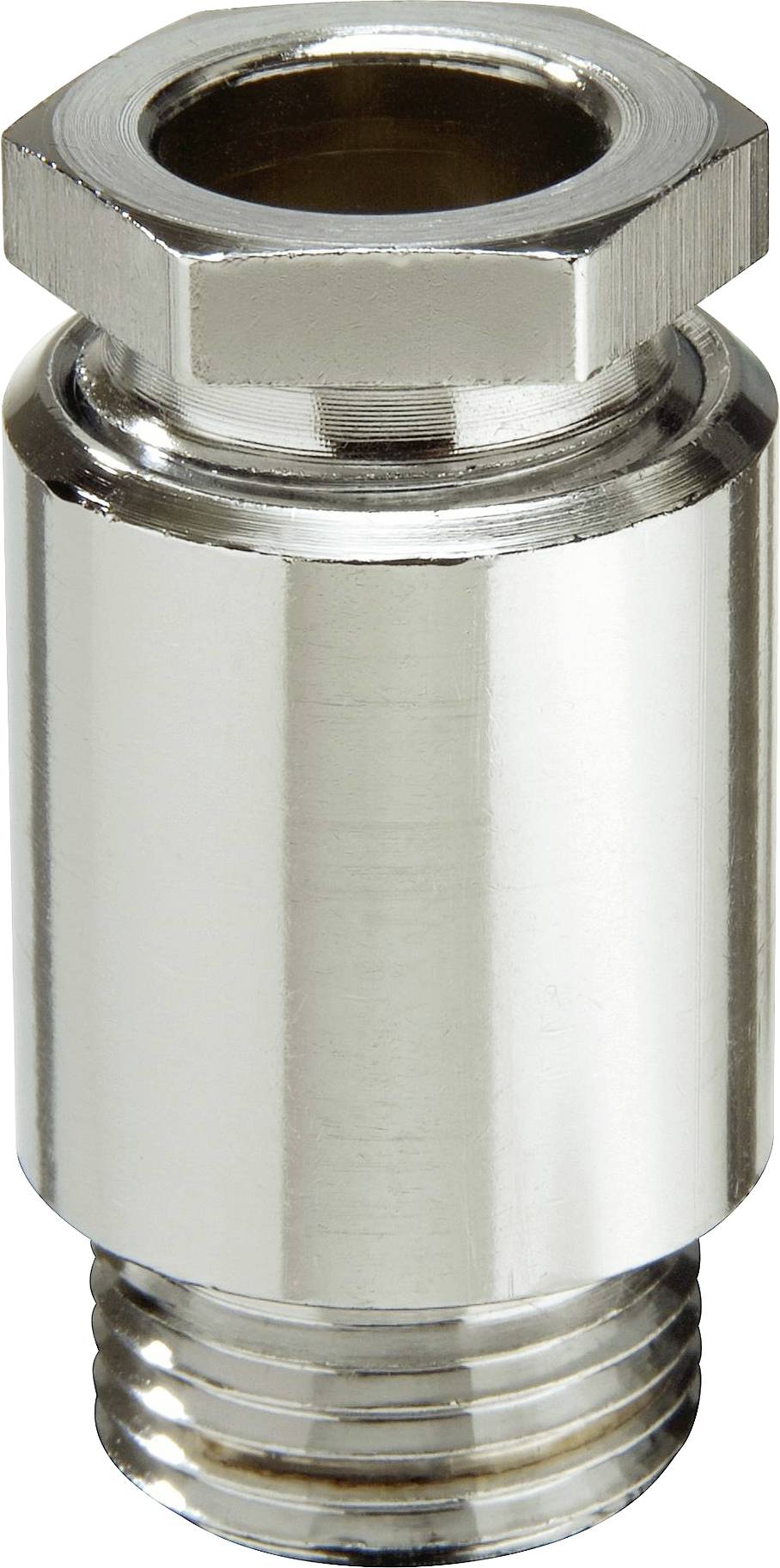

Wiska 10016208 Cable gland shockproof, with seal M105 Brass (Ni-plated) Ecru 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
M105
Type
straight
Material
Brass (Ni-plated)
Clamp Ø
78 mm
Sales and shipping:
Number
Total (€ 1,113.45 / piece)
€ 1,218.08
-9 %
€
Technical specifications
- Thread pitch 2 mm
- Hexagonal corner dimensions 113 mm
- Type of seal: Sealing ring
- Product type
Cable gland
- Features
shockproof
with seal
- Factory colour
Ecru
- External thread
M105
- Type
straight
- Material
Brass (Ni-plated)
- Clamp Ø
78 mm
- Terminal Ø (max.)
83 mm
- Thread length
20 mm
- Min. temperature
-40 °C
- Max. temperature
+100 °C
IP54
- Spanner size
105 mm
- Halogen-free
Yes
- Content
1 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
10016208
- Type
KVM 105-W80 Ni
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2477073 Wiska 10016208 Cable gland shockproof, with seal M105 Brass (Ni-plated) Ecru 1 pc(s)
Description
Cable entry according to DIN 89280 for cable without shielding.
This robust cable entry is particularly suitable for use in harsh industrial environments.
The seals have good resistance to ozone, weather and aging influences.
