Yageo Nexensos PCB 2225 PT1000 Platinum temperature sensor -40 up to +150 °C 1000 Ω 3850 ppm/K
EAN:
Part number:
Item no:
Model
PT1000
Temperature reading range (max.)
+150 °C
Connector
Soldering
Resistance
1000 Ω
Product type
Platinum temperature sensor
Datasheet (PDF)
482 Piece(s) (Only while stocks last)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 4.03
5
7% = € 0.27
€ 3.76
10
9% = € 0.37
€ 3.66
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 4.03 / piece)
€
Highlights & Details

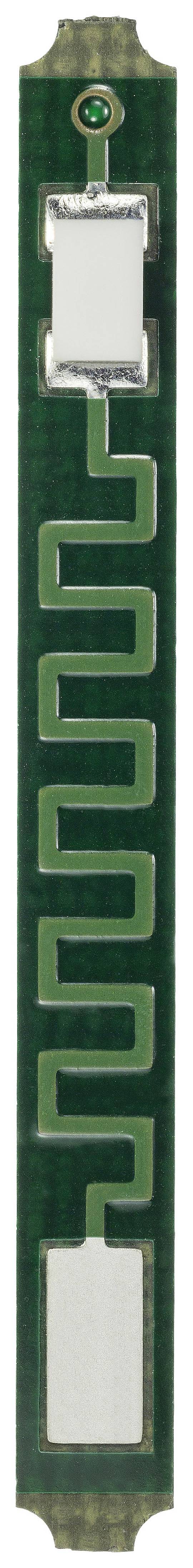

Platinum temperature sensor in thin film technology
- PT chip mounted on a circuit board
- Easy connection to wires
- Simple and efficient installation in sensor tubes
- Pads on opposite surfaces - no risk of short circuit
- High accuracy and interchangeability of the Pt sensor
- Available in large quantities
Technical specifications
- DIN EN 60751
- Measurement current 0.1 to 0.3 mA
- Chip is soldered lead-free
- Connection pads can be soldered without lead
- Packaging: Plastic box
- Type
PCB 2225
- Model
PT1000
- Temperature reading range (min.)
-40 °C
- Temperature reading range (max.)
+150 °C
- Temperature reading range
-40 up to +150 °C
- Connector
Soldering
- Operating voltage
- Accuracy class
B (F0.30)
- Resistance
1000 Ω
- Temperature coefficient
3850 ppm/K
- Length
22 mm
- Width
2.5 mm
- Height
0.9 mm
- Dim
(L x W x H) 22 x 2.5 x 0.9 mm
- RoHS-compliant
- Product type
Platinum temperature sensor
Documents & Downloads
Datasheet
Datasheet 2482907 Yageo Nexensos PCB 2225 PT1000 Platinum temperature sensor -40 up to +150 °C 1000 Ω 3850 ppm/K
Description
The platinum temperature sensor on board was specially designed for use in heat measurement. The measuring-active element forms the temperature sensor in SMD-design on a circuit board. The chip is connected to the connection wires by thin conductor paths in order to reduce the heat discharge and to prevent the measurement result from being falsified.
