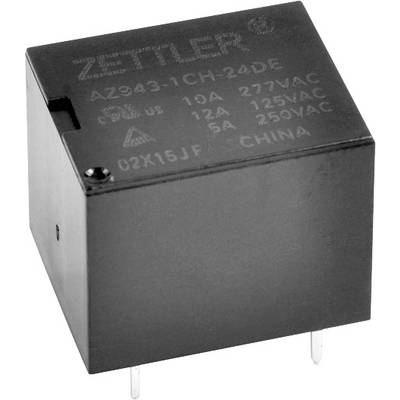

Zettler Electronics AZ943-1CH-12DEFGW PCB relay 12 V DC 15 1 change-over 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
43 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.09
10
8% = € 0.16
€ 1.93
25
11% = € 0.22
€ 1.87
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.09 / piece)
€
Technical specifications
- Type
AZ943-1CH-12DEFGW
- Coil nominal voltage
12 V DC
- Min. pick-up voltage
9 V DC
- Max. pick-up voltage
26.8 V DC
- Control mode
monostable, 1 coil
- Resistance (coil)
400 Ω
- Contact type
1 change-over
- Contact material
AgSnO2
- Switching voltage (max.)
30 V DC
- Switching current (max.)
15
- Max. switching capacity
300 W
- Response time
10 ms
- Durability
1 x 10E6
- Min. temperature
-40 °C
- Max. temperature
+85 °C
- Length
19.00 mm
- Width
15.30 mm
- Height
15.70 mm
- Dim
(L x W x H) 19.00 x 15.30 x 15.70 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- Product type
PCB relay
Documents & Downloads
Datasheet
Datasheet 2340691 Zettler Electronics AZ943-1CH-12DEFGW PCB relay 12 V DC 15 1 change-over 1 pc(s)
