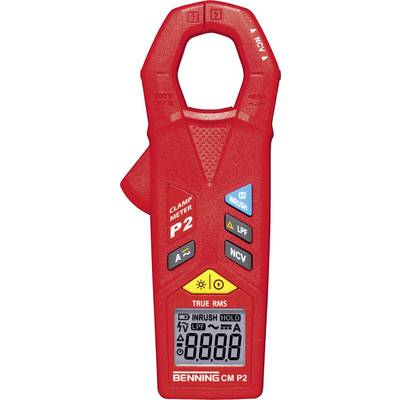

Benning CM P2 Clamp meter Digital CAT III 600 V Display (counts): 4200
EAN:
Part number:
Item no:
26 Piece(s)
Do your needs go beyond this?
Sales and shipping:
Number
Total (€ 134.45 / piece)
€
Technical specifications
- Product type
Clamp meter
- Amperage reading range DC (min.)
0.01 A
- A DC reading range (max.)
400 A
- A AC reading range (min.)
0.01 A
- Amperage reading range AC (max.)
400 A
- Basic accuracy
2.0 %
- Measurement type (details)
True RMS
- Height
42 mm
- Width
182 mm
- Length
130 mm
- Weight
0.52
Manufacturer's standards (no certificate)
- Reading category
CAT III 600 V
- Voltage metering
AC/DC
- Type
CM P2
- Display
Digital
- Display (counts)
4200
- Dim
(L x W x H) 130 x 182 x 42 mm
- Opening range of current clamps
23 mm
- Factory colour
Multicolour
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1666434 Benning CM P2 Clamp meter Digital CAT III 600 V Display (counts): 4200
Description
Minimum dimensions at maximum security, this is offered by the CM P2 from Benning.
This text is machine translated.
This text is machine translated.
Features
- Precise measurement of load currents up to 400 A
- The highest resolution of 10 mA in 40.00 A Range
- Inrush current measurement in the 40A range of motors and lighting systems
- Low-pass filter (LPF, approx. 160 Hz) for suppression of high-frequency impulses to synchronised motor drives
- Volt sensor (NCV) for contactless detection of the phase voltage (Buzzer / LCD)
- Backlit LC display
- Memory function HOLD, INRUSH, LPF
Scope of delivery
- Supplied with case and batteries
