Chauvin Arnoux F205 Clamp meter, Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 6000
- Item no.: 102537
- Manufacturer no.: P01120925
- EAN: 3760171410547
The multi-use clamp-on ammeter F205 is especially suitable for applications in the low-voltage range for small and medium-sized services, such as maintenance of electrical installations and machinery in the service or industrial area, dimensioning of…
- Warranty: 24 months
- Manufacturer: Chauvin Arnoux
- Item no.: 102537
- Manufacturer no.: P01120925
- EAN: 3760171410547
The multi-use clamp-on ammeter F205 is especially suitable for applications in the low-voltage range for small and medium-sized services, such as maintenance of electrical installations and machinery in the service or industrial area, dimensioning of…
- Warranty: 24 months
- Manufacturer: Chauvin Arnoux
Technical data
| Voltage reading range DC (min.) | 0.1 V |
|---|---|
| Voltage DC reading range (max.) | 1000 V |
| V AC reading range (min.) | 0.15 V |
| V AC reading range (max.) | 1000 V |
| Amperage reading range DC (min.) | 0.1 A |
| A DC reading range (max.) | 900 A |
| A AC reading range (min.) | 0.15 A |
| Amperage reading range AC (max.) | 600 A |
| Reading range - resistance | 0.1 Ω - 60 kΩ |
| Frequency reading range | 5 Hz - 20 kHz |
| DC resistance | 10 MΩ |
|---|---|
| AC resistance | 10 MΩ |
| Basic accuracy | 1 % |
| Measurement type | True RMS |
| Frequency range | 5 Hz -3 kHz |
| Interfaces | none |
| Power supply (details) | 9 V battery |
| Height | 222 mm |
| Width | 78 mm |
| Weight | 340 g |
| Calibrated to | Manufacturer's standards (no certificate) |
| Reading category | CAT III 1000 V , CAT IV 600 V |
| Voltage metering | AC/DC |
| Current reading | AC/DC |
| Type | F205 |
| Display | Digital |
| Display (counts) | 6000 |
| A/AC reading range | 0.15 A - 600 A |
| Reading range A DC | 0.1 A - 900 A |
| Opening range of current clamps | 34 mm |
| Product type | Clamp meter |
Documents & Downloads
- manual-102537-chauvin-arnoux-f205-clamp-meter-handheld-multimeter-digital-cat-iii-1000-v-cat-iv-600-v-display-counts-6000.pdf
PDF - manual-102537-chauvin-arnoux-f205-clamp-meter-handheld-multimeter-digital-cat-iii-1000-v-cat-iv-600-v-display-counts-6000.pdf
PDF - manual-102537-chauvin-arnoux-f205-clamp-meter-handheld-multimeter-digital-cat-iii-1000-v-cat-iv-600-v-display-counts-6000.pdf
PDF
Multi-use clamp-on ammeter F205

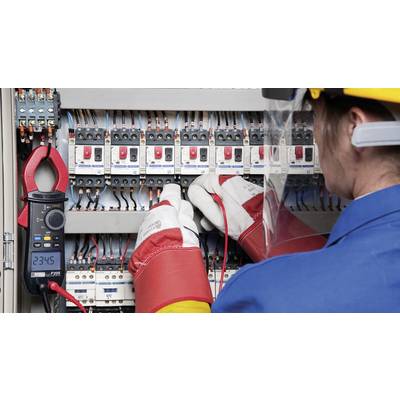

The multi-use clamp-on ammeter F205 is especially suitable for applications in the low-voltage range for small and medium-sized services, such as maintenance of electrical installations and machinery in the service or industrial area, dimensioning of power supplies and troubleshooting, installation of heating and air-conditioning systems, repair of electric vehicles, etc.
This text is machine translated.
Highlights & Details
- CAT IV 600V, CAT III 1000 V
- TRMS AC, AC+DC, DC
- Direct current measuring range 0.1 A - 900 A
- Alternate current measuring range 0.15 A - 600 A
- Opening range of current clamps 34 mm
- Active power range: 10 W - 900 kW
Facts
- Real effective measurement (TRMS)
- Diode testing
- Acoustic continuity tester
- MIN/MAX measured value memory
- True InRush function for the starting current measurement
- Backlit display
- The difference value function
- Phase sequence
- Power measurement
- The non-linear distortion factor measurement
- Peak function.
Delivery
- 2 measuring leads red and black with banana plugs
- 2 test tips, red and black
- Crocodile clamp, black
- Battery
- Bag
- Operating instructions in several languages on Mini-CD-ROM
- Brief instructions in several languages.
- Warranty: 24 months
- Manufacturer: Chauvin Arnoux
