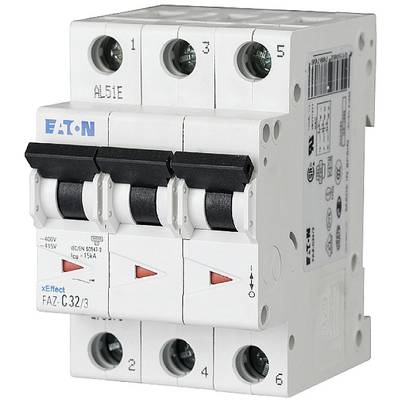

Buy Eaton 278843 FAZ-B10/3 Circuit breaker 10 A 400 V AC

Image similar

Product type

Circuit breaker

Number of pins

Release characteristics

Nominal current - rounded value

10 A

RoHS-compliant

Yes

Datasheet (PDF)

Sales and shipping:

Number

Piece(s)

Total (€ 100.83 / piece)

€

Report legal concerns

Technical specifications

Connectable conductor cross-section single-wired: 1 - 25 mm²
connectable conductor cross-section multi-wired: 1 - 25 mm²
Number of fused poles: 3
Rated insulation voltage UI: 440 V
Width in division units: 3
Mounting depth: 70.5 mm
Energy limitation class: 3
Frequency: 50 - 60 Hz
Protection class (IP): IP20
Overvoltage category: 3
Ambient temperature during operation: -25 °C - +75 °C
Pollution degree: 2
additional devices possible: Yes

Product type: Circuit breaker

Number of pins: 3

Release characteristics: B

RoHS-compliant: Yes

Nominal current - rounded value: 10 A

Nominal current: 10 A

Content: 1 pc(s)

Switch-off capacity: 15 kA

Nominal voltage: 400 V AC

: AC

: 70.5 mm

: 10 A

: 400 V

: 50-60 Hz

: B

: 440 V

: 3

: 3

: 2

: 3

: FALSE

: 5.5 W

: IP20

: 3

: FALSE

: 1-25 mm²

: 1-25 mm²

: -25-75 °C

: FALSE

: TRUE

: 3

: 10 kA

: 10 kA

: 15 kA

: 15 kA

: 4 kV

Documents & Downloads

Datasheet

Datasheet 2306848 Eaton 278843 FAZ-B10/3 Circuit breaker 10 A 400 V AC

User & Safety Instructions

User & Safety Instructions 2306848 Eaton 278843 FAZ-B10/3 Circuit breaker 10 A 400 V AC

Eaton 278843 FAZ-B10/3 Circuit breaker 10 A 400 V AC
