Finder 40.31.7.012.1020 PCB relay 12 V DC 12 A 1 change-over 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
187 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 4.03
5
7% = € 0.27
€ 3.76
10
9% = € 0.37
€ 3.66
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 4.03 / piece)
€
Highlights & Details
Print relay, series 40.31
- 3.5mm contact pin pitch
- DC sensitive coils as standard
- 6 kV (1.2/50 μs) isolation coil-contacts
- 8mm creepage and clearance distances between coil and contacts
- Meets EN 60335-1 glow wire requirements
- Flux proof: RT II standard, (RT III option)
Technical specifications
- Relais protection type: (flux density) RT II
- Type
40.31.7.012.1020
- Coil nominal voltage
12 V DC
- Min. pick-up voltage
8.8 V DC
- Max. pick-up voltage
18 V DC
- Control mode
monostable, 1 coil
- Resistance (coil)
300 Ω
- Contact type
1 change-over
- Contact material
AgNi
- Switching voltage (max.)
400 V AC
- Switching current (max.)
12 A
- Max. switching capacity
3000 VA
- Creepage distance (coil/clips)
8 mm
- Connection
Solder pins
- Electrical lifespan
200 x 103 switching cycles
- Durability
10 x 106 switching operations
- Min. temperature
-40 °C
- Max. temperature
+85 °C

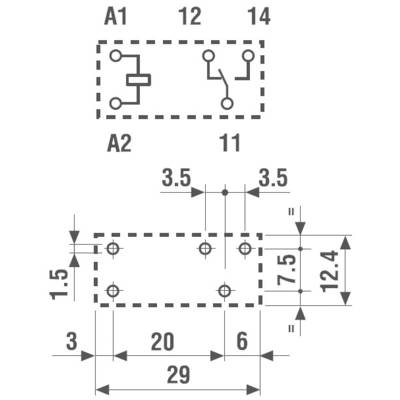

- Length
29 mm
- Width
12.4 mm
- Height
25 mm
- Dim
(L x W x H) 29 x 12.4 x 25 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
DC coil, standard contacts
- Nominal voltage (details)
12 V DC
- Switching capacity
(AC1) 3000 VA
- Switching voltage
250 Vac / 400 V AC
- Switching current
12 A
- Type
40.31.7.012.1020
- Nominal voltage range
8.8 - 18 V DC
- Product type
PCB relay
Documents & Downloads
Datasheet
Datasheet 503713 Finder 40.31.7.012.1020 PCB relay 12 V DC 12 A 1 change-over 1 pc(s)
User & Safety Instructions
User & Safety Instructions 503713 Finder 40.31.7.012.1020 PCB relay 12 V DC 12 A 1 change-over 1 pc(s)
Description
Optimised print relay with pin length of only 3.5 mm. Thus, specially suited for the circuit board assembly.
This text is machine translated.
This text is machine translated.
Hints
Approvals UL, IMQ
