Fluke 116 Handheld multimeter Digital CAT III 600 V Display (counts): 6000
EAN:
Part number:
Item no:
Datasheet (PDF)
16 Piece(s)
Do your needs go beyond this?
Sales and shipping:
Number
Total (€ 360.50 / piece)
€
Highlights & Details
Fluke 116 HVAC Multimeter with Temperature and Microamps, calibrated to manufacturer standards, CAT III 600 V
- easures temperature, microamps and more
- LoZ function prevents false readings due to ghost voltage
- Built-in thermometer for HVAC applications
Technical specifications
- Weight 550 g
- Voltage reading range DC (min.)
0.1 mV
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
600 V
- V AC reading range (min.)
0.1 mV
- V AC reading range (max.)
600 V
- Amperage reading range DC (min.)
0.1 µA
- A DC reading range (max.)
600 µA
- A AC reading range (min.)
0.1 µA
- Amperage reading range AC (max.)
600 µA
- Reading range - resistance
0.1 Ω - 50 MΩ
- Reading range - capacity
1 nF -10000 µF
- Frequency reading range
0.01 Hz - 50 k Hz
- Temperature
-40 to +400 °C
- DC resistance
10 MΩ
- AC resistance
5 MΩ
- Basic accuracy
0.5 %
- Measurement type (details)
True RMS
- Frequency range
45 Hz - 1 kHz Hz
- Interfaces
none
- Power supply (details)
9 V battery pack
- Height
167 mm
- Width
84 mm
- Weight
550 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 600 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
116
- Display
Digital
- Display (counts)
6000
- Dim
(W x H) 84 mm x 167 mm
- Temperature reading range (max.)
+400 °C
- Temperature reading range (min.)
-40 °C
- Basic accuracy
±0.5 %
- Displays
LCD, 6000 counts
FALSE
IP42
Documents & Downloads
Datasheet
Datasheet 122732 Fluke 116 Handheld multimeter Digital CAT III 600 V Display (counts): 6000
User & Safety Instructions
User & Safety Instructions 122732 Fluke 116 Handheld multimeter Digital CAT III 600 V Display (counts): 6000
Description

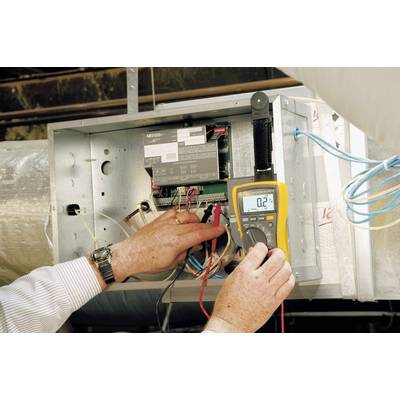

Compact true-rms meter for HVAC (heating ventilation air conditioning) troubleshooting. The Fluke 116 was specifically designed for the HVAC professional. It has everything needed in an HVAC meter including temperature and microamp measurements to quickly troubleshoot problems with HVAC equipment and flame sensors.
Features
- Built-in thermometer for HVAC applications
- Microamps to test flame sensors
- Low input impedance: helps prevent false readings due to ghost voltage
- Large white LED backlight to work in poorly lit areas
- Resistance, continuity, frequency and capacitance
- Min/Max/Average with elapsed time to record signal fluctuations
- Compact ergonomic design for one-handed operation
- Compatible with optional magnetic hanger (ToolPak™)
- CAT III 600 V safety rated
Scope of delivery
- Test leads with 4mm lantern tups
- 80BK Integrated Temperature probe
- holster
- installed 9V battery and users manual
