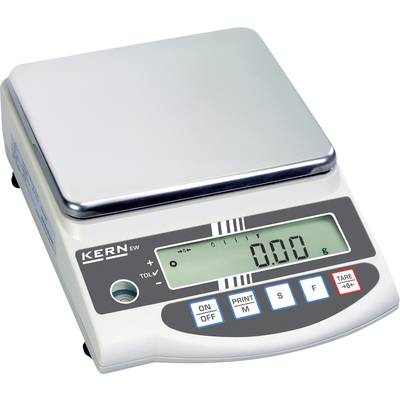

Kern EW 2200-2NM Precision scales Weight range 2.2 kg Readability 0.01 g via PSU Silver
EAN:
Part number:
Item no:
Datasheet (PDF)
20 Piece(s)
Sales and shipping:
Number
Total (€ 987.39 / piece)
€
Highlights & Details
Precision balance 0,01 g : 2200 g
- Top of the range cost-effectiveness
- with EC type approval [M]
Technical specifications
- Weight range
2.2 kg
- Factory colour
Silver
- Power supply (details)
220 V - 240 V/AC 50 Hz
- Dim
(L x W x H) 235 x 180 x 75 mm
- Weight
3 kg
- Height
75 mm
- Length
235 mm
- Width
180 mm
- Calibratable
No
Manufacturer's standards (no certificate)
- Display
Digital
- Weighing plate
Stainless steel
- Features
Calibratable
Counting
- Power supply (LOV)
via PSU
- Type
EW 2200-2NM
- Top plate (length)
160 mm
- Readability
0.01 g
- Reproducibility
0.01 g
- Top plate (width)
180 mm
- Weighing plate dimensions
180 × 160 mm
- Product type
Precision scales
Documents & Downloads
Datasheet
Datasheet 755556 Kern EW 2200-2NM Precision scales Weight range 2.2 kg Readability 0.01 g via PSU Silver
User & Safety Instructions
User & Safety Instructions 755556 Kern EW 2200-2NM Precision scales Weight range 2.2 kg Readability 0.01 g via PSU Silver
Information
Information 755556 Kern EW 2200-2NM Precision scales Weight range 2.2 kg Readability 0.01 g via PSU Silver
Description
- Only the EC NM: Internal Justierschaltung (CAL) via rotary knob on the side guarantees high accuracy and makes the location - only EW-NM: Adjustment program CAL to adjust the accuracy, external test weights against more price-capacity display: an increasing light strip shows the remaining weighing range of accurate figures: The automatic reference optimisation gradually improves the average value of the piece weight-wagon with tolerance range (programd): Enter a upper/lower limit. A visual signal supports the portioned, dosing and sorting-wind protection standard for models with weighing plate size. Removable cover with opening for pipetting, 158 x 130 x 78 mmTechnische weighing room wxdxh data - Large LCD display, digit height 17 mm dimensions weighing plate (stainless steel)-mm, large illustrated - 170 x 142 mm 180 x 160 mm overall dimensions (without wind protection), 182 x 235 x 75 mm - WXDXH - 192 x 265 x 87 mm, weight approx. 1.3 kg-permitted ambient temperature range 10°C / 30°C
This text is machine translated.
This text is machine translated.
Features
- only EG-NM: Internal adjustment (CAL) by rotary knob on the side. Guarantees high degree of accuracy and makes the location irrelevant
- only EW-NM: Adjusting program CAL for quick setting of the balance accuracy, external test weights at an additional price
- Capacity display: A bar lights up to show how much of the weighing range is still available
- Precise counting: The automatic optimisation of reference weight gradually improves the average value of the piece weight
- Weighing with tolerance range (checkweighing): Input of an upper/lower limit value. A visual signal assists with portion division or grading
- Draft shield standard for models with weighing plate sizes . Removable metal cover with pipette opening, weighing space WxDxH 158x130x78 mm|Technical data
- Large LCD display, digit height 17 mm
- Dimensions of weighing plate (stainless steel)
- mm, see larger picture
- 170x142 mm
- 180x160 mm
- Overall dimensions (without draft shield) WxDxH
- , 182x235x75 mm
- 192x265x87 mm
- Net weight approx. 1,3 kg
- Permissible ambient temperature 10 °C / 30 °C
