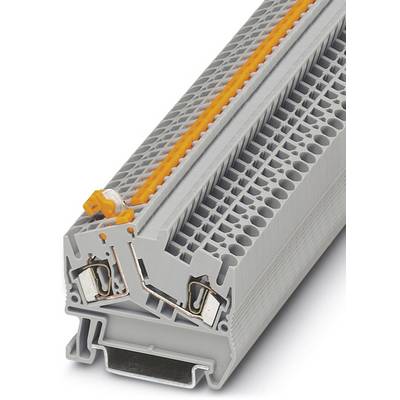

Knife disconnect terminal block STS 2,5-MT 3036990 Phoenix Contact

  • Item no.: 565690
  • Manufacturer no.: 3036990
  • EAN: 4017918904449
Variants
PT 2,5-MT BU Blue PT 2,5-MT OG Orange PT 2,5-QUATTRO-MT BU Blue PT 2,5-QUATTRO-MT Grey PT 2,5-TWIN-MT BU Blue PT 2,5-TWIN-MT Grey ST 4-HEDI Black ST 4-HEDI BU Blue STS 2,5-MT BU Blue STS 2,5-MT Grey ZDMTK 2,5 BU Blue ZDMTK 2,5 Grey ZDMTK 2,5-TWIN Grey

Knife disconnect terminal block, Connection type: Spring-cage connection, Cross section: 0.08 mm² - 4 mm², AWG: 28 - 12, Nominal current: 20 A, Nominal voltage: 400 V, Length: 51 mm, Width: 5.2 mm, Color: gray, Assembly: NS 35/7,5, NS 35/15

Full description
  • Item no.: 565690
  • Manufacturer no.: 3036990
  • EAN: 4017918904449
Variants
PT 2,5-MT BU Blue PT 2,5-MT OG Orange PT 2,5-QUATTRO-MT BU Blue PT 2,5-QUATTRO-MT Grey PT 2,5-TWIN-MT BU Blue PT 2,5-TWIN-MT Grey ST 4-HEDI Black ST 4-HEDI BU Blue STS 2,5-MT BU Blue STS 2,5-MT Grey ZDMTK 2,5 BU Blue ZDMTK 2,5 Grey ZDMTK 2,5-TWIN Grey

Knife disconnect terminal block, Connection type: Spring-cage connection, Cross section: 0.08 mm² - 4 mm², AWG: 28 - 12, Nominal current: 20 A, Nominal voltage: 400 V, Length: 51 mm, Width: 5.2 mm, Color: gray, Assembly: NS 35/7,5, NS 35/15
