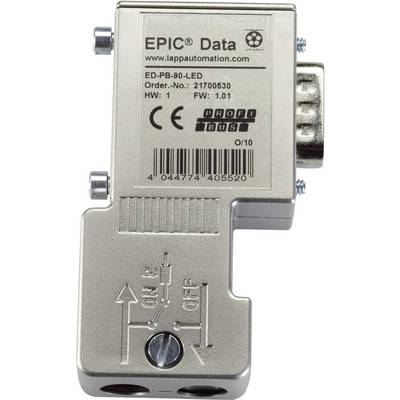

Metal plug with 'EPIC Data' inscription, containing order number, hardware and firmware version. Shows LED indicator and connection pairs ON/OFF.

Datasheet (PDF)

3 Piece(s)

Sales and shipping:

Number

Piece(s)

Total (€ 68.90 / piece)

€

Only 3 Piece(s) available

Report legal concerns

Highlights & Details

LAPP 21700530 EPIC® ED-PB-90-LED-S EPIC Data PROFIBUS Plug Connector With Screw Connection Adapter -

Technical specifications

For Cable 5.0 -8.0 mm
Supply voltage 4.75 - 5.25 V/DC
Storage temperature -25 - +80 ºC
Relative Humidity: 75 % when +25 °C

Connector type: Adapter

Connector standard: Bus connector

Connection side A: D-SUB plug

Connection side B: D-SUB plug

No. of pins: 9

Nominal voltage: 5.25 V

Nominal current: 12.50 A

Nominal current - rounded value: 12.5 A

Connector cross-section (max.): 0.25 mm²

: IP20

Features: + status indicator light
+ programmer interface

Min. temperature: 0 °C

Max. temperature: +60 °C

Content: 1 pc(s)

Manufacturer part #: 21700530

Type: EPIC® ED-PB-90-LED-S

Material (details): Metallised Case

Type: Cable Type: Solid + Flexible · With LED-display

Number of pins: 9

Connection: -

Cable diameter (details): 5 mm

RoHS-compliant: Yes

Product type: Sensor/actuator splitter/adapter

Documents & Downloads

Datasheet

Datasheet 741750 LAPP 21700530 EPIC® ED-PB-90-LED-S EPIC Data PROFIBUS Plug Connector With Screw Connection Adapter -

User & Safety Instructions

User & Safety Instructions 741750 LAPP 21700530 EPIC® ED-PB-90-LED-S EPIC Data PROFIBUS Plug Connector With Screw Connection Adapter -

Information

Information 741750 LAPP 21700530 EPIC® ED-PB-90-LED-S EPIC Data PROFIBUS Plug Connector With Screw Connection Adapter -

Description

The integrated termination resistance of the PROFIBUS plug connector makes possible the flexible layout of PROFIBUS-Systems with the possibility of an easy expansion. The switch takes over the on-off control mechanism of the termination and can be used externally. The PROFIBUS Plug connector can be used for automation technologies, in machines-, plants- and tool making and control technique. Pin assignment D-sub according to PROFIBUS.
