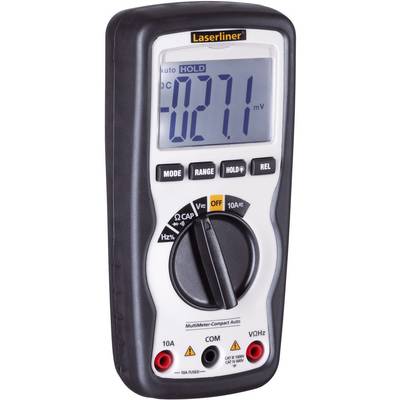

Laserliner Handheld multimeter Digital CAT IV 600 V Display (counts): 4000
EAN:
Part number:
Item no:
Datasheet (PDF)
7 Piece(s)
Sales and shipping:
Number
Total (€ 72.26 / piece)
€
Only 7 Piece(s) available
Highlights & Details
Multimeter Compact Car
- CAT III 1000 V, CAT IV 600 V
- Non-contact voltage tester
Technical specifications
- Voltage reading range DC (min.)
0.1 mV
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
600 V
- V AC reading range (min.)
0.1 mV
- V AC reading range (max.)
600 V
- Amperage reading range DC (min.)
1 mA
- A DC reading range (max.)
10 A
- A AC reading range (min.)
1 mA
- Amperage reading range AC (max.)
10 A
- Reading range - resistance
0.1 Ω - 40 MΩ
- Reading range - capacity
0,001 nF - 100µF
- Frequency reading range
0,001 Hz - 10 MHz
- DC resistance
10 MΩ
- AC resistance
10 MΩ
- Basic accuracy
0.5 %
- Measurement type (details)
Average
- Frequency range
50/60 Hz Hz
- Interfaces
none
- Power supply (details)
9 V battery
- Height
150 mm
- Width
70 mm
- Weight
255 g
Manufacturer's standards (no certificate)
- Reading category
CAT IV 600 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
083.034A
- Display
Digital
- Display (counts)
4000
- Dim
(W x H) 70 mm x 150 mm
Documents & Downloads
Datasheet
Datasheet 1052672 Laserliner Handheld multimeter Digital CAT IV 600 V Display (counts): 4000
User & Safety Instructions
User & Safety Instructions 1052672 Laserliner Handheld multimeter Digital CAT IV 600 V Display (counts): 4000
User & Safety Instructions 1052672 Laserliner Handheld multimeter Digital CAT IV 600 V Display (counts): 4000
User & Safety Instructions 1052672 Laserliner Handheld multimeter Digital CAT IV 600 V Display (counts): 4000
Warranty Terms
Warranty Terms 1052672 Laserliner Handheld multimeter Digital CAT IV 600 V Display (counts): 4000
Description
Measure quickly and precisely in the areas of voltage, current, resistance, capacity, frequency and duty cycle · With automatic range switching and manual range selection · Acoustic continuity tester · Diode test function · Integrated non-contact voltage indicator with acoustic, optical and vibration alarm.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Safety test leads
- Battery
- User manual.
