MAKERFACTORY Touch PC Set Raspberry Pi® 3 B+ 1 GB 4 x 1.4 GHz Touchscreen, PSU, Noobs OS, Heatsink, Storage case

Raspberry Pi ® 3 B+ 3.2" (8.13 cm) Tablet PC Set

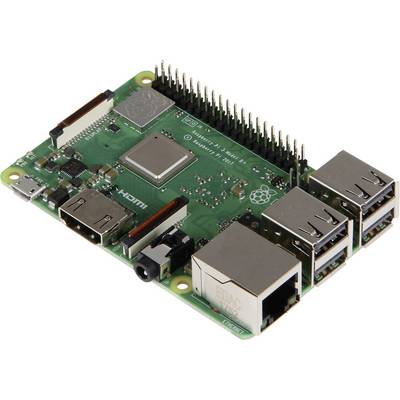

The Raspberry Pi ® 3B+ is a powerful successor to the extremely popular credit card-sized single-board computer. This 3rd-generation Raspberry comes with a high-performance ARM Cortex A53 4x 1.4 GHz quad core processor. By this upgrade gives the Pi ® 3 B+ in certain applications significantly more power. For quick and easy networking are Wi-Fi and Bluetooth® Low Energy and GB-LAN onBoard. The layout and the connections of the Raspberry Pi ® 3 B+ are identical to the Raspberry Pi ® 3 Model B and Pi ® B+.

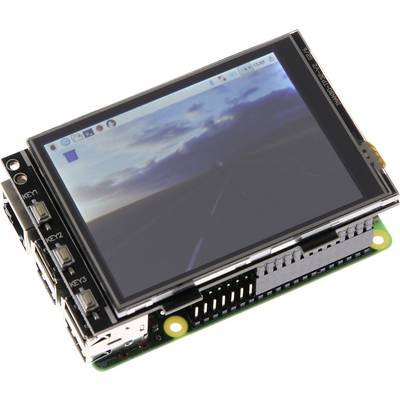

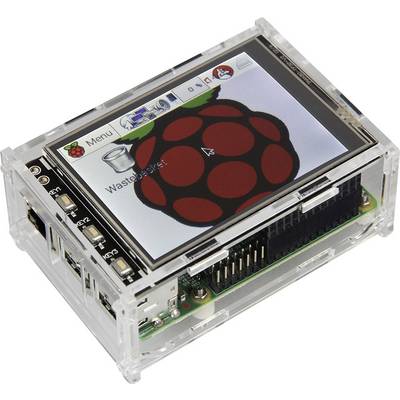

The Display Starter Kit is the perfect basis for your Raspberry. Thus, in addition to the accessories needed to your PC in the size of a credit card, direct meaningful extensions. You can convert your Raspberry with this starter kit in a mini all-in-One PC. The 8.13 cm (3.2") touch-screen display module is simply attached to the Raspberry Pi ® 3. The resistive touchscreen, 320 x 240 pixels and a LED-background lighting. With the preinstalled Raspbian Jessie Linux distribution, you can immediately get started. The acrylic casing offers both the raspberry as well as the customary in the 8.13 cm (3.2") touch-screen display module, the necessary protection and allows access to the interfaces. Power is supplied via the micro USB adaptor with 2.5 A output current and a removable clip function for the international use.

Instead of a hard drive. Raspberry Pi ® 3 boots and stores data via the MicroSD card slot on the back side of the PCB.

The display has two new features:
1. Dual Monitor Mode: the output image is at the same time output to HDMI and TFT
2. Resolution Modifier: via the settings in the /boot/config.txt", it can be used to set different resolutions for HDMI monitor and TFT-observe the registered

Raspberry Pi ® 3 B+ vs. Raspberry Pi ® 3 Model B
- ARM Cortex-A53 4 x 1.4 GHz quad core processor (Raspberry Pi ® 3B to 4x 1.2 GHz)
WLAN sub-rsat funding now also 5 GHZ
LAN interface on GB-LAN improves
Bluetooth On Version 4.2 improves

This text is machine translated.

Highlights & Details

• ARM Cortex A53 64-bit processor (4x 1.4 GHz)
• WiFi (ac) and Bluetooth 4.2 Low Energy onBoard
• Complete set for the construction of a Touch Tablet PC
• Incl. prefabricated 16GB memory card
• Dual Monitor Mode: the output image is output at the same time on HDMI™ and TFT

Delivery

• Raspberry Pi® 3B
• Hard case
• 8.13 cm (3.2") Touch TFT

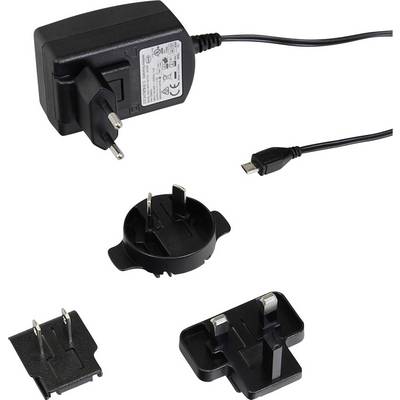

• Power supply unit
• Housing

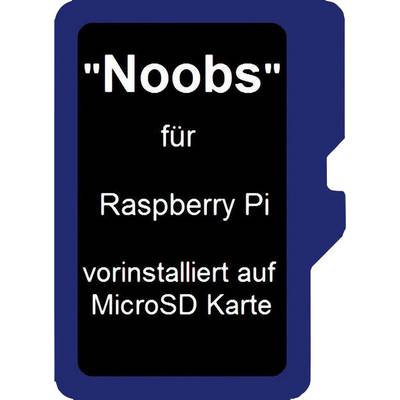

• 16 GB memory card with operating system
• Heat sink.
