MAKERFACTORY MF-6324852 Colour sensor 1 pc(s) Compatible with (development kits): Arduino
EAN:
Part number:
Item no:
Show alternatives
Sales and shipping:
Total (€ 10.92 / piece)
€
Highlights & Details
Maker factory M5 Stack Color Light-to-digital converter + IR-Filter
- Red, green, blue (RGB) and white light
- Capture with IR-blocking filter
- programmable analogueue amplification and integration time
- 3,800,000:1 dynamic range
- very high sensitivity - ideal for operation behind dark glass
- program platform: Arduino, UIFlow (Blockly, Pyhton)
Technical specifications
- Packaging type
Bulk
- Product type
Colour sensor
- Interfaces
Grove
- Height
8 mm
- Length
32 mm
- Width
24 mm
- Weight
4 g
- Compatible with
Arduino
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2108284 MAKERFACTORY MF-6324852 Colour sensor 1 pc(s) Compatible with (development kits): Arduino
Description

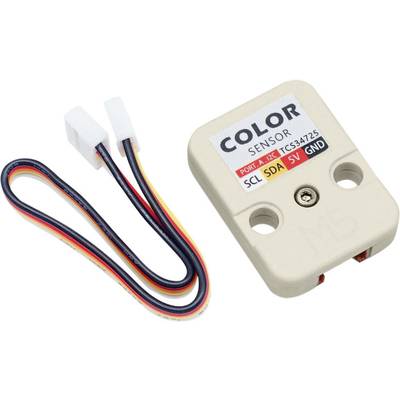

The color light-to-digital converter with IR-Filter from the M5 Stack Series is a TCS 3472 device which has a digital return of red, green, blue (RGB) and white light-scan values.
An IR-blocking filter, which is integrated on the chip and the color sensor photo diodes localized, minimizes the IR-spectral component of the incident light and enable precise color measurements.
In order to achieve a better result, you can try the case of range on the side with a marker to black.
This device communicates with the M5-core via the grove port (I2C). The address is 0x29.
This text is machine translated.
An IR-blocking filter, which is integrated on the chip and the color sensor photo diodes localized, minimizes the IR-spectral component of the incident light and enable precise color measurements.
In order to achieve a better result, you can try the case of range on the side with a marker to black.
This device communicates with the M5-core via the grove port (I2C). The address is 0x29.
This text is machine translated.
Scope of delivery
- 1 x color light-to-digital converter
- 1 x grove cable
