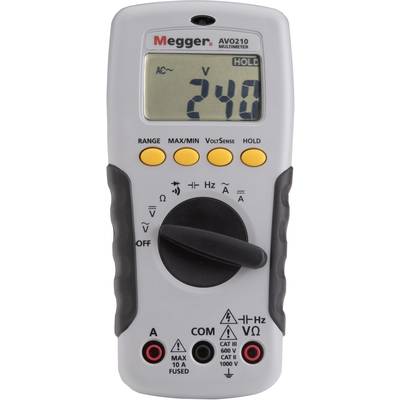

Megger AVO 210 Handheld multimeter Digital CAT III 600 V, CAT II 1000 V, CAT III 500 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Show alternatives
Sales and shipping:
Total (€ 130.24 / piece)
€
Technical specifications
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
1000 V
- V AC reading range (max.)
750 V
- A DC reading range (max.)
10 A
- Amperage reading range AC (max.)
10 A
- Reading range - resistance
0-20 MΩ
- Reading range - capacity
0-2000 mF
- Frequency reading range
0-20 MHz
- Basic accuracy
1.5 %
- Frequency range
20 MHz
- Height
156 mm
- Width
44 mm
- Length
74 mm
- Weight
320 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 600 V
CAT II 1000 V
CAT III 500 V
- Current reading
AC
DC
AC/DC
- Type
AVO 210
- Display
Digital
- Dim
(L x W x H) 74 x 44 x 156 mm
Documents & Downloads
Datasheet
Datasheet 2305663 Megger AVO 210 Handheld multimeter Digital CAT III 600 V, CAT II 1000 V, CAT III 500 V
User & Safety Instructions
User & Safety Instructions 2305663 Megger AVO 210 Handheld multimeter Digital CAT III 600 V, CAT II 1000 V, CAT III 500 V
Description
AVO210 is a versatile and very handy multimeter with comfortable additional functions. The small, compact design makes ideal for always being in your jacket pocket while traveling. They measure resistance, frequency and capacitance both AC and DC. The device is characterized by a very simple and intuitive operation. You will hardly need the manual. The minimum/maximum display is useful. The slim, compact housing is robust and resistant. The display has a backlight so that measurements can be carried out safely even under poor light conditions.
This text is machine translated.
This text is machine translated.
Features
- Automatic switch-off after 10 minutes
- 2000 digit LCD digital display
- VOLTAGE RANGE 1,000 V DC / 750 V AC
- MEASUREMENT RANGE 10 A DC / AC
- Resistance, frequency, capacitance
- Non-contact voltage testing
- Data-hold function Data-hold function
- Min/max display.
Scope of delivery
- Test lead.
