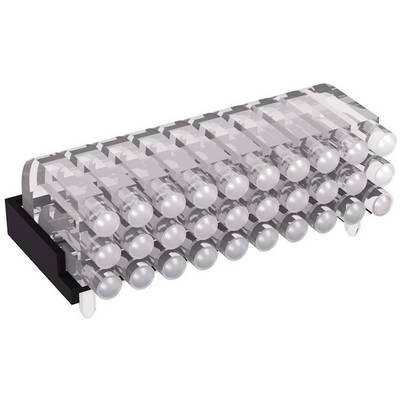

Mentor 1296.2103 Light pipe Rigid Panel-fit, Press-fit
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.45
5
6% = € 0.32
€ 5.13
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.45 / piece)
€ 5.45
plus VAT.
Highlights & Details
Light pipe
- Radiating surface Ø 2 mm
Technical specifications
- Type
1296.2103
- Mounting type
Panel-fit
Press-fit
- Manufacturer
Mentor
- Configuration
3 x 10
- Type
Rigid
- Lens shape
Dome
- Factory colour
Transparent
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+85 °C
- Lens size (Ø)
1.95 mm
- Width
14.45 mm
- Height
10.7 mm
- Length
26.2 mm
- Dim
(L x W x H) 26.2 x 14.45 x 10.7 mm
- RoHS-compliant
Yes
- Product type
Light pipe
Documents & Downloads
Datasheet
Datasheet 556596 Mentor 1296.2103 Light pipe Rigid Panel-fit, Press-fit
User & Safety Instructions
User & Safety Instructions 556596 Mentor 1296.2103 Light pipe Rigid Panel-fit, Press-fit
Description
The fiber optic cable component is for the use of chip leds of the design 0603 or smaller designs designed and has a 2.54 mm grid dimension. The system is equipped with a screen in order to prevent irradiation, so that even mixed colors are possible. The double-stacked on top of each other mounted light conductor element is with the base plate in the circuit board is fixed.
This text is machine translated.
This text is machine translated.
Hints
Supplied without LEDs.
