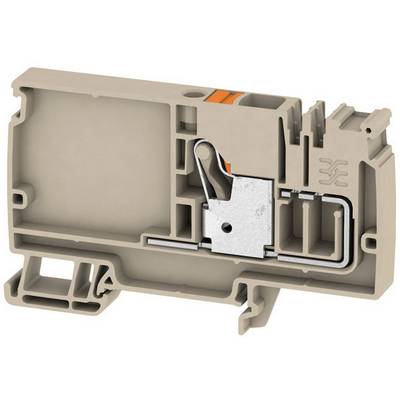

Weidmüller 2503900000 Feeder terminal 10 mm Pull spring Grey 20 pc(s)
EAN:
Part number:
Item no:
Product type
Feeder terminal
Connection
Pull spring
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
10 mm²
Nominal current - rounded value
57 A
Datasheet (PDF)
Show alternatives
Sales and shipping:
Total (€ 5.67 / piece)
€
Highlights & Details
Power connection terminal
- AAP12 10 LO OR
Technical specifications
- Product type
Feeder terminal
- Connection
Pull spring
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
10 mm²
- AWG (min.)
20
- AWG max.
6
- Clamp width
10 mm
- Factory colour
Grey
- Nominal current
57 A
- Nominal current - rounded value
57 A
- Nominal voltage
800 V
- Stripping length (max.)
18 mm
- Manufacturer part #
2503900000
- Content
20 pc(s)
- Industrial packaging
Yes
- Type
AAP12 10 LO OR
- Dim
(L x W x H) 54 x 10 x 89 mm
- Width
10 mm
- Height
89 mm
- Length
54 mm
- RoHS-compliant
Yes
- Connector colour
Orange
Documents & Downloads
Datasheet
Datasheet 1669297 Weidmüller 2503900000 Feeder terminal 10 mm Pull spring Grey 20 pc(s)
