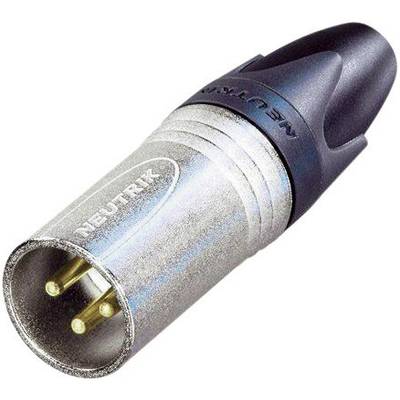

Neutrik NC3MXX-EMC XLR connector Plug, straight Number of pins: 3 Silver 1 pc(s)
EAN:
Part number:
Item no:
Product type
XLR connector
Connector type
Plug, straight
Connection
Soldering
Number of pins
3
Contact material
Gold plated
Datasheet (PDF)
59 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 12.60
3
6% = € 0.70
€ 11.90
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 12.60 / piece)
€
Highlights & Details
Neutrik NC3MXX-EMC XLR connector Plug, straight Number of pins: 3 Silver 1 pc(s)
- With integrated capacitive shield housing connection
- Low inductance connection of cable shield to the housing on large-scale, circular capacity
Technical specifications
- Type
Straight
- Product type
XLR connector
- Connector type
Plug, straight
- Factory colour
Silver
- Connection
Soldering
- Number of pins
3
- Type
NC 3 MXX-EMC coupling
- Contact material
Gold plated
- Manufacturer part #
NC3MXX-EMC
- Type
NC3MXX-EMC
24
- Content
1 pc(s)
- Bend relief
Yes
- Nominal voltage
50 V AC
- Nominal current
5 A
- Temperature range
-30 to +80 °C
- Seal type
None
- Leading contact (PE)
Yes
- Pins
3
- Connection
Solder
- Socket diameter
4 - 7 mm
Documents & Downloads
Datasheet
Datasheet 746659 Neutrik NC3MXX-EMC XLR connector Plug, straight Number of pins: 3 Silver 1 pc(s)
User & Safety Instructions
User & Safety Instructions 746659 Neutrik NC3MXX-EMC XLR connector Plug, straight Number of pins: 3 Silver 1 pc(s)
Information
Information 746659 Neutrik NC3MXX-EMC XLR connector Plug, straight Number of pins: 3 Silver 1 pc(s)
Description
The EMC-XLR Series is a specially designed version of the XX series to give enhanced protection against radio frequency interference (radio, phone ,...) for critical applications, such as in live performance and recordings. The design ensures a continuous HF shielding from the cable to the connector housing by means of a 360° shield contacts. A ferrite bead between pin 1 and the cable shield provides a suppression of electromagnetic interference.
