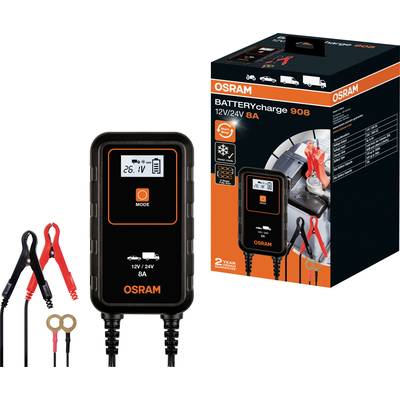

Osram Automotive OEBCS908 4052899620544 Automatic charger 12 V, 24 V 4 A, 8 A
EAN:
Part number:
Item no:
12 Piece(s)
Sales and shipping:
Number
Total (€ 58.82 / piece)
€
Highlights & Details
Osram Automotive OEBCS908 4052899620544 Automatic charger 12 V, 24 V 4 A, 8 A
- Compatible with stop/start function
- 9Stufen charging procedure for lead acid batteries
- 7Stufen lithium charging profile
- Bad weather charging mode
- LC screen
- Polarity reversal and short-circuit protection
- Automatically sets to long-term maintenance mode
- This text is machine translated.
Technical specifications
- Product type
Automatic charger
- Dim

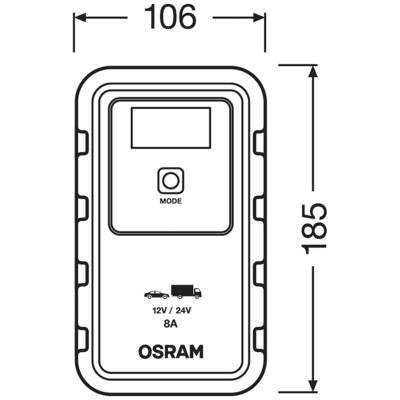

(L x W x H) 185 x 64 x 106 mm
- Battery voltage
12 V
24 V
- Operating voltage
230 V / AC
- Recommended battery capacity at 12 V max.
150 Ah
- Recommended battery capacity at 24 V (max.)
70 Ah
- Suitable for
VRLA AGM
PbCa
SLA
Lead acid
VRLA AGM
Lithium
- Weight
800 g
- Features
Battery test
Refresher/regenerator
Battery tester
Charge monitoring
Battery life protection
Suitable for start-stop systems
Multiple charging modes
- Battery charging function
2 A
4 A
- Charging current at 12 V
4 A
8 A
- Charging current at 24 V
4 A
8 A
- Width
64 mm
- Height
106 mm
- Length
185 mm
IP65
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2317219 Osram Automotive OEBCS908 4052899620544 Automatic charger 12 V, 24 V 4 A, 8 A
Warranty Terms
Warranty Terms 2317219 Osram Automotive OEBCS908 4052899620544 Automatic charger 12 V, 24 V 4 A, 8 A
Description
Intelligent battery charger and battery maintenance device with multi-stage charging cycle. The BATTERY Charger 908 is an intelligent 8A charger and battery maintenance device for 12V to 24V vehicles such as most cars, vans, box trucks and smaller trucks At the push of a button, a 7-stage charging cycle is started for lithium batteries and a 9-stage charging cycle for lead-acid/AGM batteries. Has a digital display for easy operation even in poor light conditions. For your safety includes functions such as polarity reversal protection and overvoltage protection. Simply connect and be sure that the charger is waiting for your car battery: It automatically switches to the long-term maintenance mode as soon as the battery is fully charged.
This text is machine translated.
This text is machine translated.
Features
- Selection of up to 4A or 8A charging current - select the optimum charging current for your battery type
- for 12V and 242V vehicles
- 12V charging up to 150Ah and 24VLadung up to 70Ah
- compatible with stop/start function
- 9-stage charging process for lead acid/AGM batteries
- 7-stage lithium charging profile
- bad weather charging mode, which protects the batteries in cold temperatures
- large LCD screen that clearly shows voltage and charging
- Backlit display can be read even in poor light conditions
- One-button operation for easy operation
- Quick connector with terminals or O-ring connections for long-term connections
- Reverse polarity and short-circuit protection
- automatically sets to long-term maintenance mode when the battery is fully charged
Scope of delivery
- Incl. Terminals
- O-ring connector
