PCE CEE power distributor DELTA Anif7 9135061 400 V 32 A
EAN:
Part number:
Item no:
3 Piece(s)
Sales and shipping:
Number
Total (€ 373.95 / piece)
€
Only 3 Piece(s) available
Highlights & Details
Plastic junction ebbs 7 IV 32 A
- IP54
Technical specifications
- Product type
CEE power distributor
- No. of CEE connectors
2
- Type A
Screw terminals
- Type B
CEE connector (5-pin, 16 A)
CEE connector (5-pin, 32 A)
PG connector
- No. of PG sockets
3
- Inputs
Screw terminals
- Outputs
1 CEE-socket 16A, 5-pin, 1 CEE-socket 32A, 5-pin, 3 outlets 16 A (230 V)
- Nominal input voltage
400 V
- Nominal output voltage
400 V
- Nominal input current
32 A
IP54
- Protection
1 line safety switch C 16 A 3-pin, 1 Line safety switch C 32 A 3-pole, 3 Line safety switch C 16 A 1-pole
- Dim
(W x H x D) 222 x 320 x 140 mm
- Width
222 mm
- Height
320 mm
- Inputs (CEE power distributor)
Screw terminals
- Outputs (CEE power distributors)
CEE connector (5-pin, 16 A)
CEE connector (5-pin, 32 A)
PG connector
- Content
1 pc(s)
- Depth
140 mm
Description

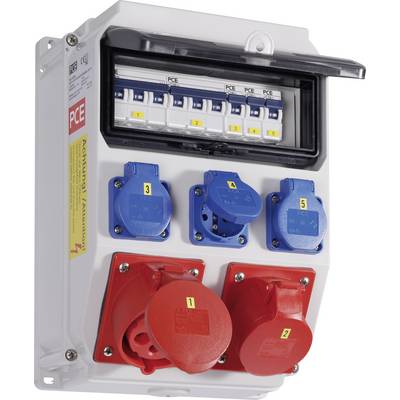

Wall distributor made of plastic series DELTA with 9 part units in the folding window.
