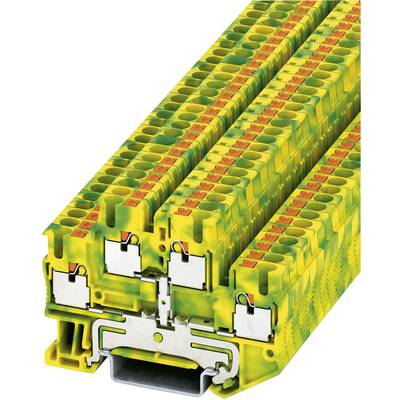

Phoenix Contact 3210596 PTTB 2,5-PE Push-in Double-level Protective Conductor Terminal PITTB-PE Green, Yellow
EAN:
Part number:
Item no:
Product type
Dual port PG terminal
Connection
Quick-connect
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
4 mm²
Content
1 pc(s)
Datasheet (PDF)
131 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 6.29
5
6% = € 0.38
€ 5.91
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 6.29 / piece)
€
Highlights & Details
Phoenix Contact 3210596 PTTB 2,5-PE Push-in Double-level Protective Conductor Terminal PITTB-PE Green, Yellow
- PTTB 2,5-PE
Technical specifications
- Product type
Dual port PG terminal
- Connection
Quick-connect
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
26
- AWG max.
14
- Clamp width
5.2 mm
- No. of rows
2
- Number of pins
4
- Factory colour
Green
Yellow
- Min. stripping length
8 mm
- Stripping length (max.)
10 mm
- Manufacturer part #
3210596
- Content
1 pc(s)
- Industrial packaging
No
- Type
PTTB 2,5-PE
- Dim
(L x W x H) 68 x 5.2 x 47.5 mm
- Width
5.2 mm
- Height
47.5 mm
- Length
68 mm
- Weight
0.0140 kg
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
- Material
Polyamide
- Nominal current (details)
-
- Connection
-
Documents & Downloads
Datasheet
Datasheet 733461 Phoenix Contact 3210596 PTTB 2,5-PE Push-in Double-level Protective Conductor Terminal PITTB-PE Green, Yellow
User & Safety Instructions
User & Safety Instructions 733461 Phoenix Contact 3210596 PTTB 2,5-PE Push-in Double-level Protective Conductor Terminal PITTB-PE Green, Yellow
Description
The potential of double level terminals PITTB reduces the space consumption by 50% in comparison to single storey to two storey.. The problem free contacting for mounting rails is ensured by simple snapping on to the rails.
